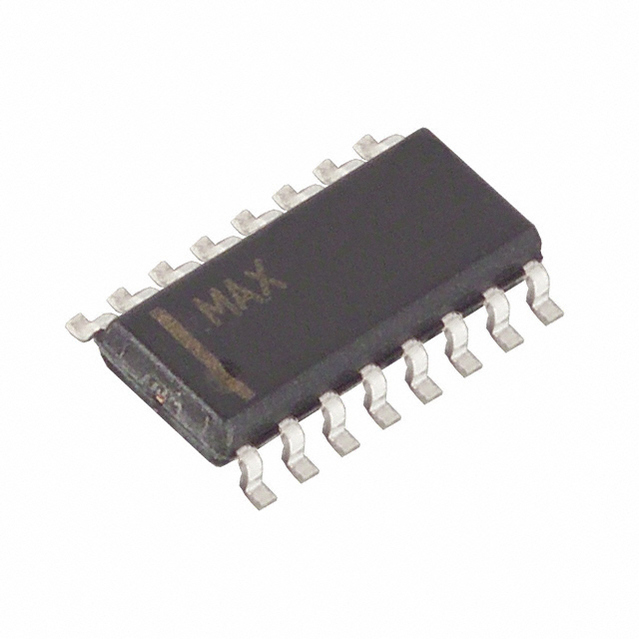

MAXIM INTEGRATED PRODUCTS MAX3033EESE+ 芯片, RS422 发送器, 2MBPS, 3.6V, NSOIC-16
The is a ±15KV ESD protected, 3.3V quad RS422 transmitter in 16 pin NSOIC package. This high speed transmitter sends digital data transmission signals over twisted pair balanced lines in accordance with TIA/EIA-422-B and ITU-T V.11 standards. The transmitter output is protected to ±15KV using human body model. The MAX3033E has slew rate limiting function to minimize EMI and reduce reflections caused by improperly terminated cables. The hot swap capability of this transmitter eliminates false transitions on data cable during power-up or hot insertion. It is low power, ESD protected, pin compatible upgrade to the industry standard 26LS31 and SN75174 devices. This device is used in V.11/X.21 interface application.
电源电压DC 3.00V min
针脚数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16
封装 SO-Narrow-16
封装 SO-Narrow-16
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
制造应用 电机驱动与控制, 通信与网络, Industrial, Motor Drive & Control, 工业, Communications & Networking, Communications & Networking, Industrial, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX3033EESE+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX3032EESE+ 美信 | 完全替代 | MAX3033EESE+和MAX3032EESE+的区别 |
DS90LV031ATMTC/NOPB 美国国家半导体 | 类似代替 | MAX3033EESE+和DS90LV031ATMTC/NOPB的区别 |
