MUSBB15130

5 位置 面板安装 扣接 通孔 直角 USB 2.0 - mini B 连接器

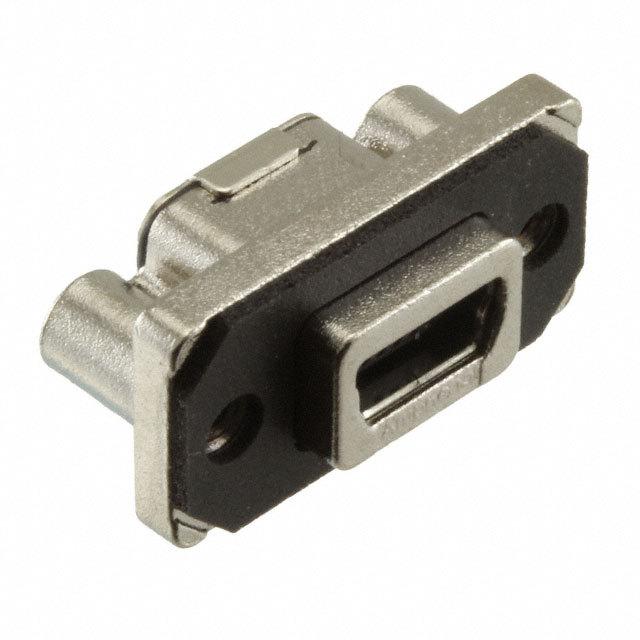

Run your audio and video effectively with the mini USB type b audio and video connector from . This RCP connector"s 5 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a receptacle type gender. This connector has a single port. Its pitch is 1.6 mm. This device has a maximum current rating of 1 A. MUSBB15130 is housed in thermoplastic. Its 5 terminals use the solder termination method. This product is 20 mm long, 10 mm tall and 9.98 mm deep. This part has an operating temperature range of -40 °C to 105 °C.
