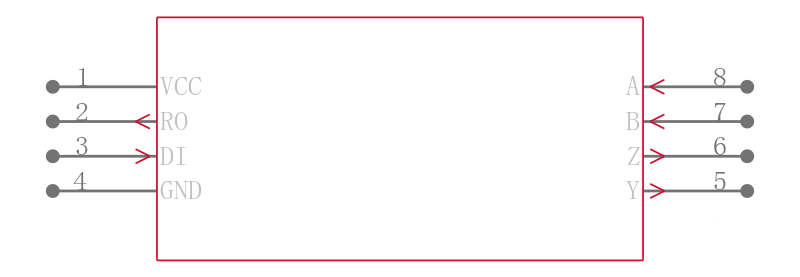

MAX3488CSA+

MAXIM INTEGRATED PRODUCTS  MAX3488CSA+  芯片, RS422/RS485 收发器, 250KBPS, 3.6V, NSOIC-8

The is a 3.3V powered, slew rate limited true RS485/RS422 transceiver in 8 pin NSOIC package. The slew rate limited drivers minimize EMI and reduce reflections caused by improperly terminated cables allowing error free data transmission at data rates up to 250Kbps. The driver is short circuit current limited and protected against excessive power dissipation by thermal shutdown circuitry that places the driver output into a high impedance state. The receiver input has a fail-safe feature that gives a logic high output if both inputs are open circuit.

.

Supply voltage range from 3V to 3.6V

.

Operating temperature range from 0°C to 70°C

.

One driver and one receiver

.

No charge pump

.

Full duplex communication

.

Driver/receiver enable function

.

Allows up to 32 transceivers on the bus

.

Interoperable with +5V logic

.

Common mode input voltage range from -7V to +12V
