MAX13081EESA+

MAXIM INTEGRATED PRODUCTS  MAX13081EESA+  芯片, RS422/RS485 收发器, 250KBPS, 5.5V, NSOIC-8

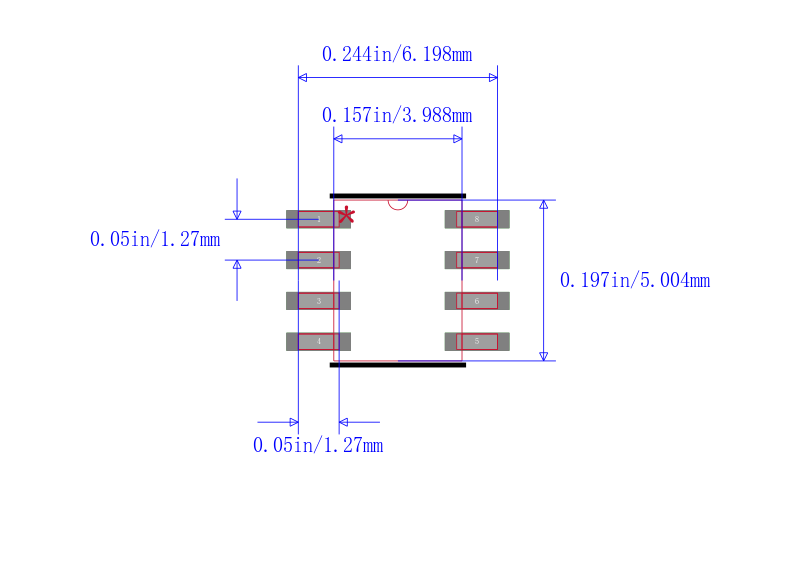

The is a ±15KV ESD protected, fail-safe, hot swap, +5V RS485/RS422 transceiver in 8 pin NSOIC package. The fail-safe circuitry in this device features a logic high receiver output when receiver input is open or shorted. The receiver outputs a logic high if all transmitters on a terminated bus are disabled high impedance and a hot swap capability to eliminate false transitions on the bus during power-up or hot insertion. This device has reduced slew rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables allowing error free data transmission up to 250Kbps. It has a 1/8 unit load receiver input impedance which allows up to 256 transceivers on the bus.

.

Supply voltage range from 4.5V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

One driver and one receiver

.

Full duplex communication

.

True fail-safe receiver while maintaining EIA/TIA-485 compatibility

.

Hot swap input structures on DE and REcomplimentary
