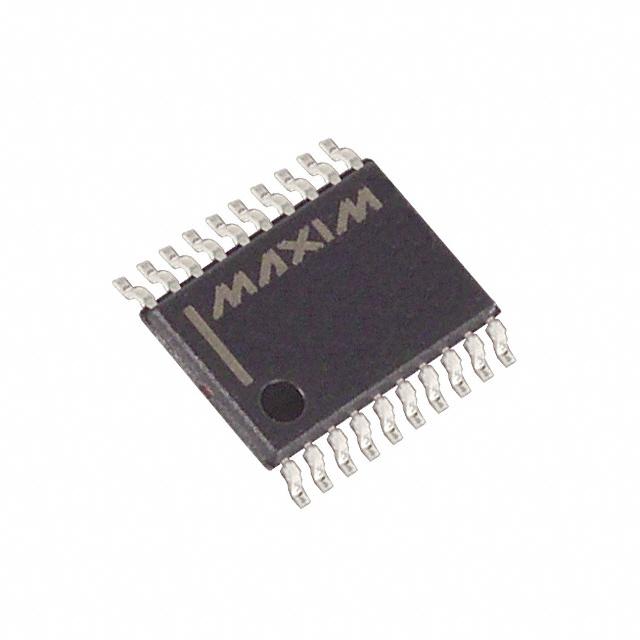

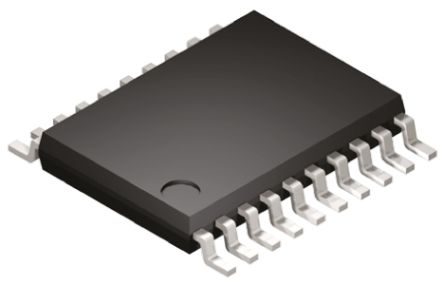

MAXIM INTEGRATED PRODUCTS MAX3380ECUP+ 芯片, 收发器, RS-232, 3V - 5.5V, SMD 新
RS-232 双路发射器/接收器,
**Maxim** 系列双路 RS232 线路驱动器和和接收器旨在用于所有 EIA/TIA-232E、V.24 和 V.28 通信接口。 由于其低功率关闭模式,**Maxim** 的 RS232 双路发射器/接收器将允许以下应用:接口转换、调制解调器、便携式计算机以及 RS232 电池供电系统。 多通道收发器 MAX233、MAX235 具有外部组件,因此非常适合空间至关重要的应用。
多通道 RS232 驱动器/接收器(RS232 收发器)
数据速率范围为 120 kbit/s 到 1 Mbit/s
低功率关闭模式可减少功耗
低电压
一些 RS232 收发器可能包含 0.1uF 外部电容器
集成 ESD 应用
得捷:
IC TRANSCEIVER FULL 2/2 20TSSOP
欧时:
### RS-232 双路发射器/接收器,Maxim Integrated**Maxim** 系列双路 RS232 线路驱动器和和接收器旨在用于所有 EIA/TIA-232E、V.24 和 V.28 通信接口。 由于其低功率关闭模式,**Maxim** 的 RS232 双路发射器/接收器将允许以下应用:接口转换、调制解调器、便携式计算机以及 RS232 电池供电系统。 多通道收发器 MAX233、MAX235 具有外部组件,因此非常适合空间至关重要的应用。 多通道 RS232 驱动器/接收器(RS232 收发器) 数据速率范围为 120 kbit/s 到 1 Mbit/s 低功率关闭模式可减少功耗 低电压 一些 RS232 收发器可能包含 0.1uF 外部电容器 集成 ESD 应用 ### RS-232 线路驱动器和接收器
立创商城:
MAX3380ECUP+
e络盟:
芯片, 收发器, RS-232, 3V - 5.5V, SMD
安富利:
The MAX3380E/MAX3381E are +2.35V to +5.5V-poweredEIA/TIA-232 and V.28/V.24 communication interfaceswith low power requirements, high data-ratecapabilities, and enhanced electrostatic dischargeESD protection on both the TTL and RS-232 sides.The MAX3380E/MAX3381E have two receivers and twotransmitters. All RS-232 inputs, outputs, and logic inputpins are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge method and the Human Body Model, and ±8kV using IEC 1000-4-2 Contact Dischargemethod.The proprietary low-dropout transmitter output stageenables true RS-232 performance from a +3.1V to+5.5V supply with a dual charge pump. The partsreduce the transmitter output levels to RS-232-compatiblelevels with no increase in supply current for suppliesless than +3.1V and greater than +2.35V. The+2.35V to +5.5V operating range is fully compatiblewith lithium-ion Li+ batteries. The charge pumprequires only four small 0.1µF capacitors for operation.The MAX3380E/MAX3381E transceivers use Maxim"srevolutionary AutoShutdown Plus™ feature to automaticallyenter a 1µA shutdown mode. Thesedevices shut down the on-board power supply anddrivers when they do not sense a valid signal transitionfor 30 seconds on either the receiver or transmitterinputs.The MAX3380E is capable of transmitting data atrates of 460kbps while maintaining RS-232 outputlevels, and the MAX3381E operates at data rates upto 250kbps. The MAX3381E offers a slower slew ratefor applications where noise and EMI are issues. TheMAX3380E/MAX3381E have a unique VL pin thatallows interoperation in mixed-logic voltage systemsdown to +1.65V. Both input and output logic levelsare referenced to the VL pin. The MAX3380E/MAX3381Eare available in a space-saving TSSOP package.
Newark:
# MAXIM INTEGRATED PRODUCTS MAX3380ECUP+ TRANSCEIVER, RS-232, 3V - 5.5V, SMD
DeviceMart:
IC TXRX RS232 460KBPS 20TSSOP
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX3380ECUP+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX3380EEUP+T 美信 | 完全替代 | MAX3380ECUP+和MAX3380EEUP+T的区别 |
MAX3380ECUP+T 美信 | 完全替代 | MAX3380ECUP+和MAX3380ECUP+T的区别 |
MAX3380ECUP-T 美信 | 完全替代 | MAX3380ECUP+和MAX3380ECUP-T的区别 |
