MAX3804ETE#G16

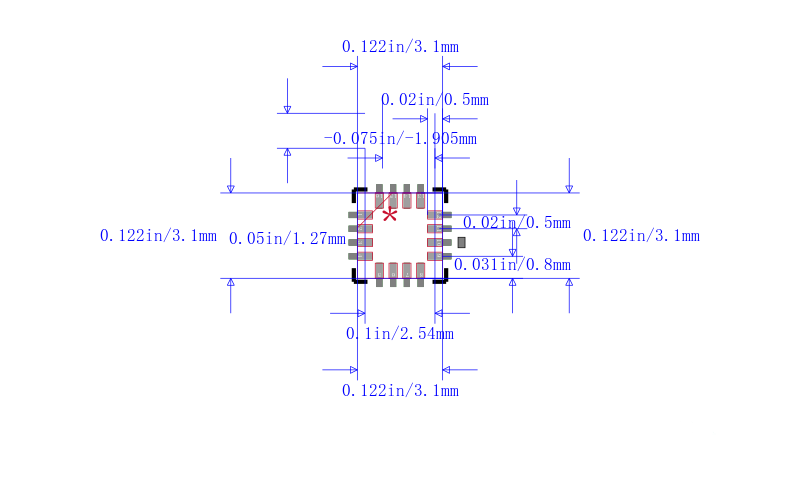

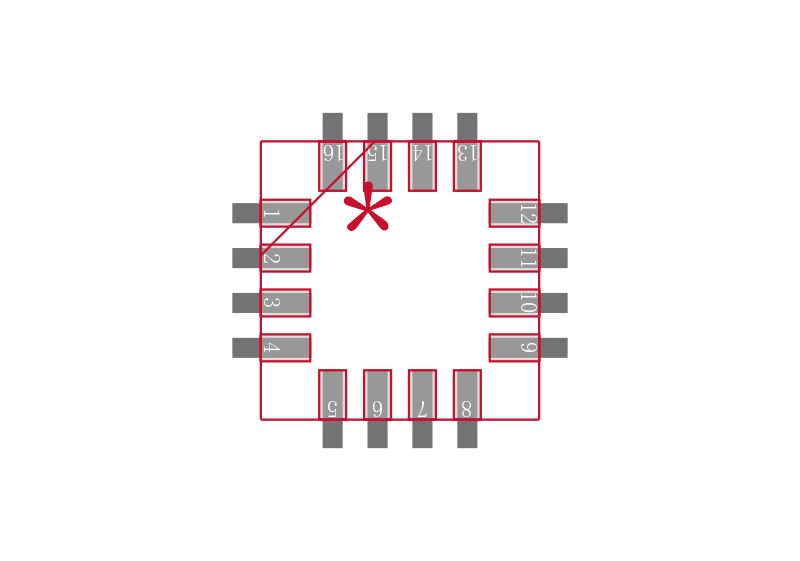

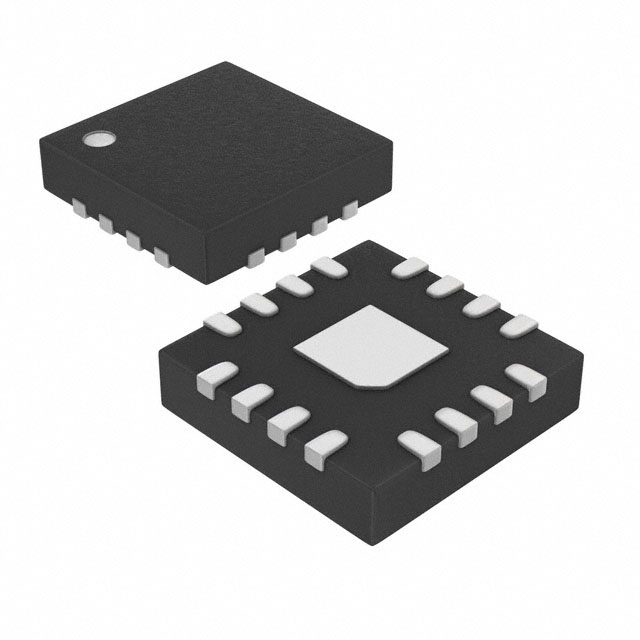

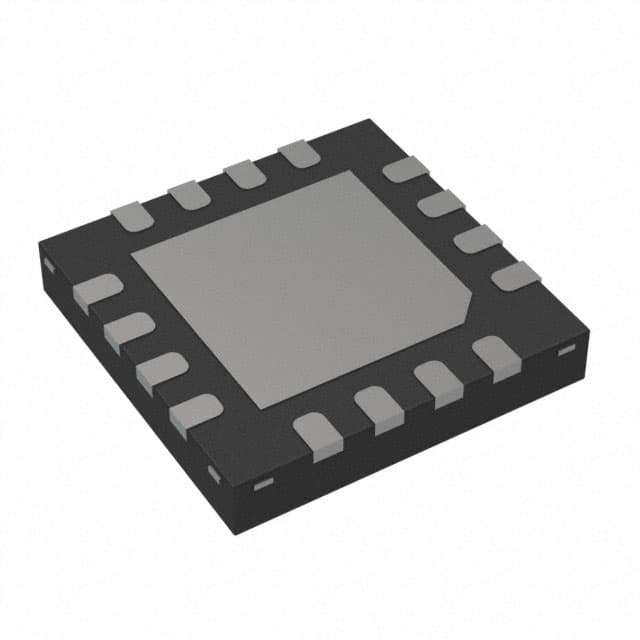

Telecom Circuit, 1-Func, Bipolar, 3 X 3MM, 0.8MM HEIGHT, ROHS COMPLIANT, MO-220, TQFN-16

1/0 Driver Ethernet 16-TQFN 3x3

得捷:
IC DRIVER 1/0 16TQFN

安富利:
* Compensates Up to 30in 0.75m of 6-mil FR-4 Transmission Line Loss * 115mW Operating Power * Up to 12.5Gbps Data Rate * Compatible with 8B10B, 64B66B, and PRBS Data * Less than 30psP-P Residual Jitter After Equalization * 3-Bit Equalization Level Select Input * 3mm x 3mm Thin QFN Package * DC-Coupling to 1.8V, 2.5V, or 3.3V CML I/O * -40°C to +85°C Operation * +3.3V Core Supply Voltage

Chip1Stop:
Settable Receive Equalizer 16-Pin TQFN EP

Win Source:
1/0 Driver Ethernet 16-TQFN 3x3
