MAX205CPG+G36

MAXIM INTEGRATED PRODUCTS  MAX205CPG+G36  芯片, RS232 收发器, 116KBPS, 5.25V, DIP-24

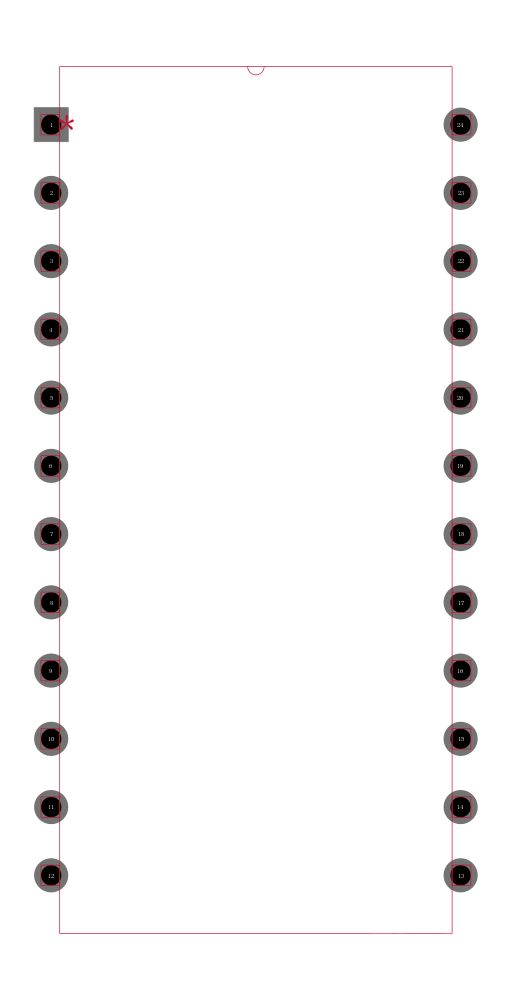

The is a +5V, RS232 transceiver in 24 pin DIP package. It is a RS232 and V.28 transceiver with integrated charge pump circuitry for single +5V supply operation. It consists of three sections such as charge pump voltage converters, drivers transmitters and receivers. The integrated charge pump circuitry eliminates the need for bipolar ±12V supply and enables single supply operation from +5V or 9V to +12V. The driver maintains the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120Kbps when loaded in accordance with the EIA/TIA-232E specification. The device uses no external components and it is recommended for applications with limited circuit board space.

.

Supply voltage range from 4.75V to 5.25V

.

Operating temperature range from 0°C to 70°C

.

Saves board space

.

VCC power supply current of 11mA

.

Five RS232 drivers and five RS232 receivers

.

Transition region slew rate of 5.5V/µs

.

5µW low power shutdown mode and TTL three state output

.

Integrated 0.1µF capacitors

.

Saves power for longer battery operation

.

Shutdown supply current of 1µA
