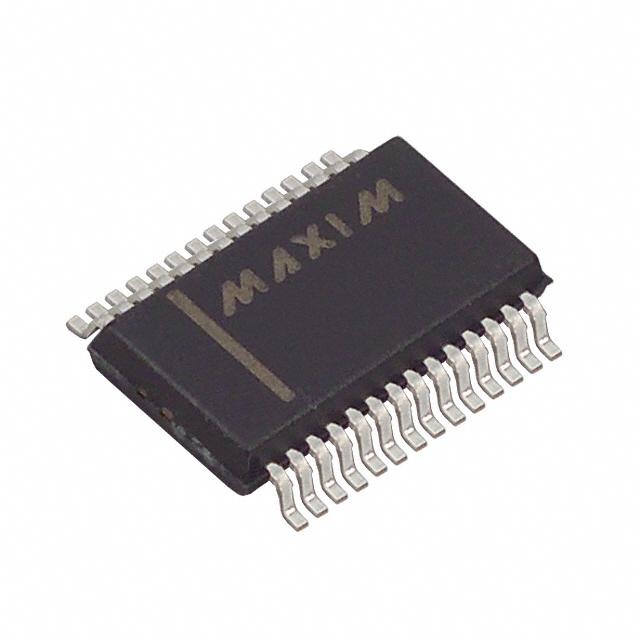

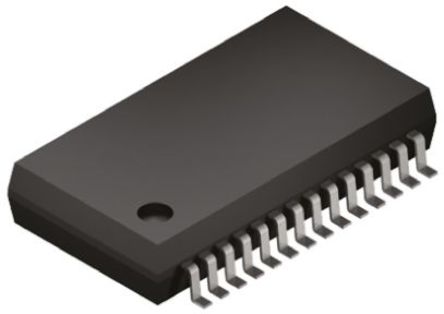

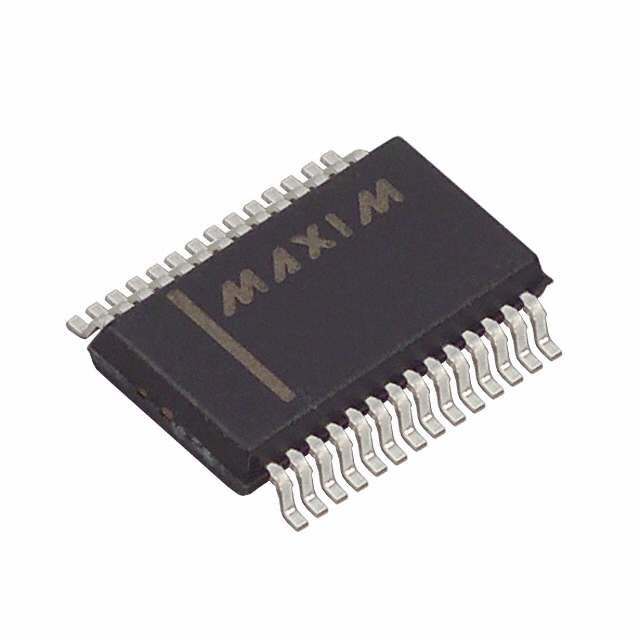

MAX3162CAI+

MAXIM INTEGRATED PRODUCTS  MAX3162CAI+  芯片, RS422/RS485 收发器, 10MBPS, 5.5V, SSOP-28

RS-232/RS-485/RS-422 收发器， Products

得捷:
IC TRANSCEIVER FULL 2/2 28SSOP

欧时:
### RS-232/RS-485/RS-422 收发器，Maxim Integrated Products### 多协议收发器

立创商城:
MAX3162CAI+

贸泽:
RS-422/RS-485 接口 IC 3-5.5V 1uA Tcvr Multiprotocol

e络盟:
RS422/RS485收发器, 2个驱动器, 3V至5.5V电源, SSOP-28

安富利:
The MAX3160/MAX3161/MAX3162 are programmable RS-232/RS-485/422 multiprotocol transceivers. The MAX3160/MAX3161 are pin programmable as a 2TX/2RX RS-232 interface or a single RS-485/422 transceiver. The MAX3162 is configured as a 2TX/2RX RS-232 interface and a single RS-485/422 transceiver simultaneously.All devices incorporate a proprietary low-dropout transmitter output stage and an on-board dual charge pump to allow RS-232 and RS-485/422 compliant performance from a +3V to +5.5V supply. These devices also feature pin-selectable transmitter slew rates for both RS-232 and RS-485/422 modes. Slew-rate limiting minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 250kbps. Disabling slew-rate limiting allows these devices to transmit at data rates up to 10Mbps in RS-485/422 mode and up to 1Mbps in RS-232 mode.The MAX3160/MAX3162 offer a flow-through pinout that facilitates board layout. The MAX3160/MAX3161/MAX3162 are available in tiny SSOP packages and operate from -40°C to +85°C.

Chip1Stop:
Single Transmitter/Receiver RS-232/RS-422/RS-485 28-Pin SSOP

Newark:
# MAXIM INTEGRATED PRODUCTS  MAX3162CAI+  Transceiver RS422, RS485, 3V-5.5V supply, 2 Drivers, SSOP-28

DeviceMart:
IC TXRX RS232/485/422 28SSOP
