MAX251CSD+T

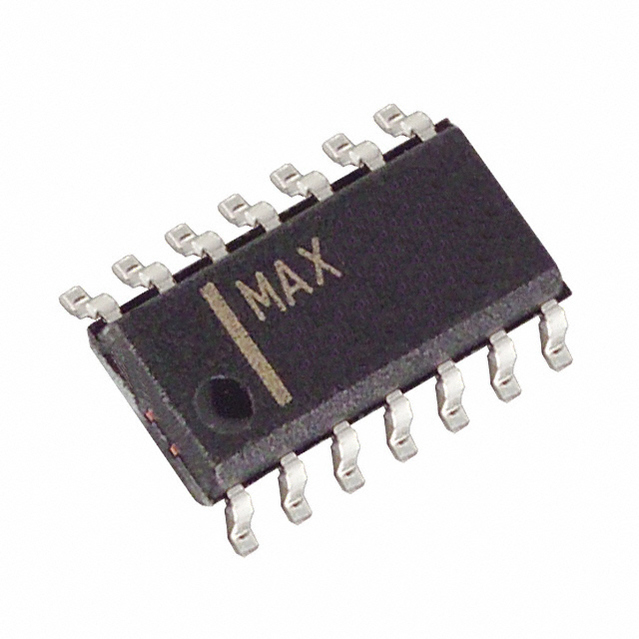

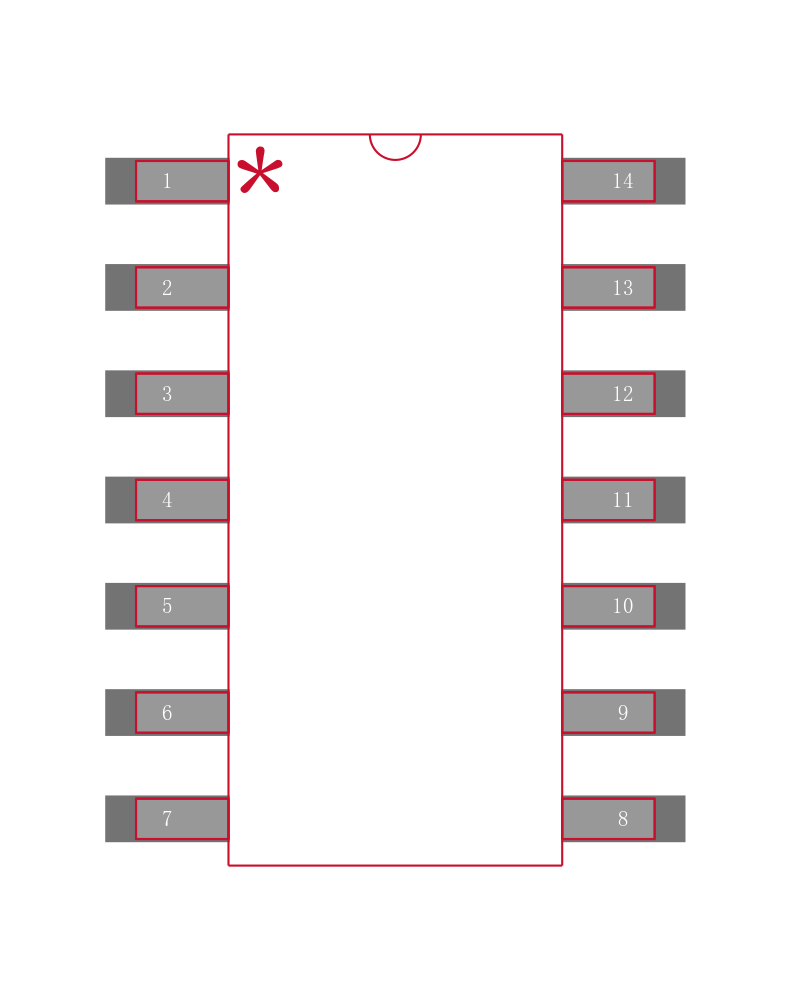

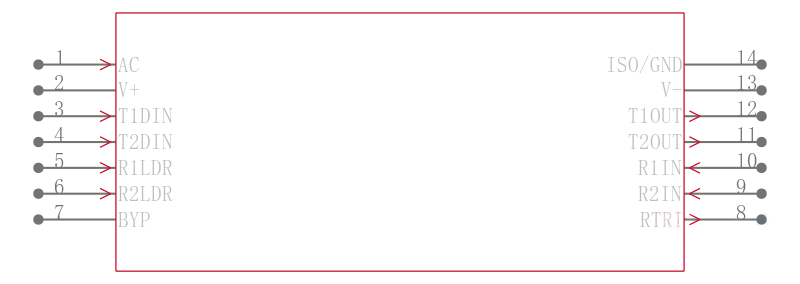

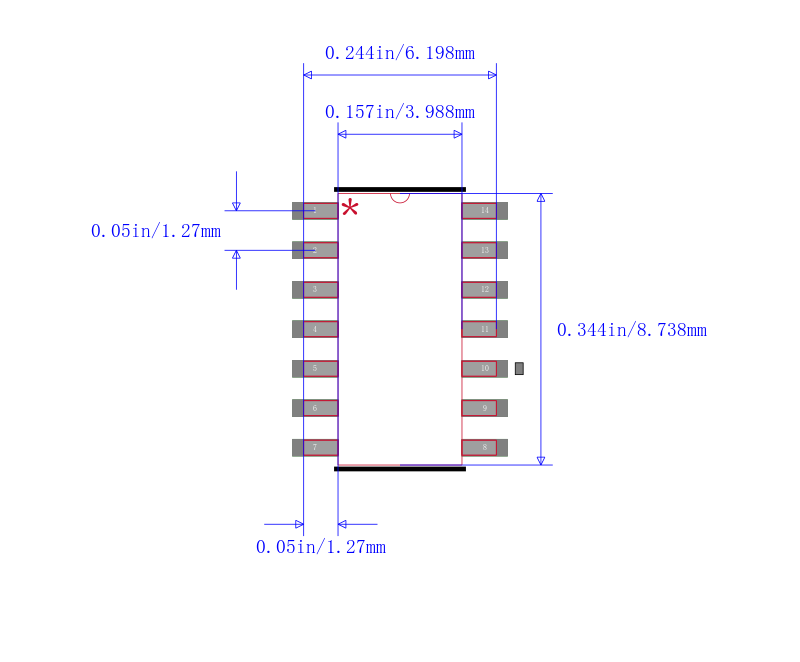

MAXIM INTEGRATED PRODUCTS  MAX251CSD+T  芯片, RS232 收发器, 116KBPS, 5.5V, NSOIC-14

The is a +5V powered, isolated, RS232 driver/receiver in 14 pin NSOIC package. It is a chip set form the heart of a complete electronically isolated RS232 dual transmitter/receiver. By combining many functions on two chips, the cost and complexity required for an isolated digital interface is greatly reduced. Four low cost optocouplers, four capacitors, a diode and a small pot-core type transformer are all that are required to complete a 19.2k baud transceiver. Faster data rates are possible by using high-speed optocouplers. In addition to the driving and receiving circuitry for the optocouplers, the chip set includes a push-pull transformer driver to supply power to the interface"s isolated side. This device is used in bridge ground differentials and data links to analogue circuits.

.

Supply voltage range is 4.5V to 5.5V

.

Operating temperature range from 0°C to 70°C

.

Isolated data interface

.

Positive supply current is 2.5mA

.

Shutdown power is 5µW

.

2 transmitters and 2 receivers

.

3-state enable time tEN is 3.5µS, 3-state disable time is 1µS

.

Maximum threshold voltage is 2V
