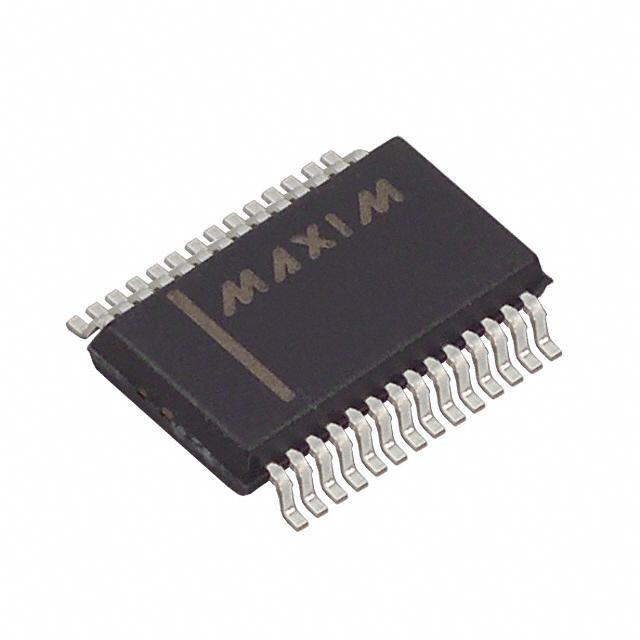

MAX3243EEAI+T

MAX3243EEAI+T 编带

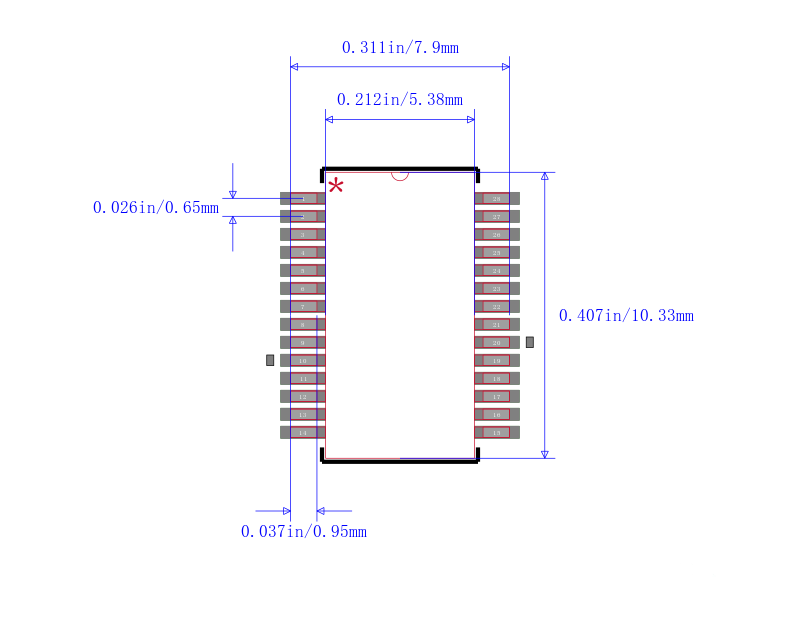

3/5 Transceiver Full RS232 28-SSOP

立创商城:
收发器 250Kbps

得捷:
IC TRANSCEIVER FULL 3/5 28SSOP

安富利:
The MAX3221E/MAX3223E/MAX3243E are 3V-powered EIA/TIA-232 and V.28/V.24 communications interfaces with automatic shutdown/wakeup features, high data-rate capabilities, and enhanced electrostatic discharge ESD protection. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, to ±8kV using IEC 1000-4-2 Contact Discharge, and to ±15kV using the Human Body Model.The MAX3221E/MAX3223E/MAX3243E achieve a 1µA supply current with Maxim"s revolutionary AutoShutdown™ feature. They save power without changes to the existing BIOS or operating system by entering low-power shutdown mode when the RS-232 cable is disconnected, or when the transmitters of the connected peripherals are off.The transceivers have a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a +3.0V to +5.5V supply with a dual charge pump. The charge pump requires only four small 0.1µF capacitors for operation from a +3.3V supply. Each device is guaranteed to run at data rates of 250kbps while maintaining RS-232 output levels.The MAX3221E contains just one driver and one receiver, making it the smallest single-supply RS-232 transceiver. The MAX3223E has two drivers and two receivers. The MAX3243E is a complete 3-driver/5-receiver serial port ideal for notebook or subnotebook computers. It also includes two noninverting receiver outputs that are always active, allowing external devices to be monitored without forward biasing the protection diodes in circuitry that may be powered down.The MAX3221E, MAX3223E, and MAX3243E are available in space-saving TQFN, SSOP, and TSSOP packages.

Chip1Stop:
Triple Transmitter Quint Receiver RS-232 28-Pin SSOP T/R

Verical:

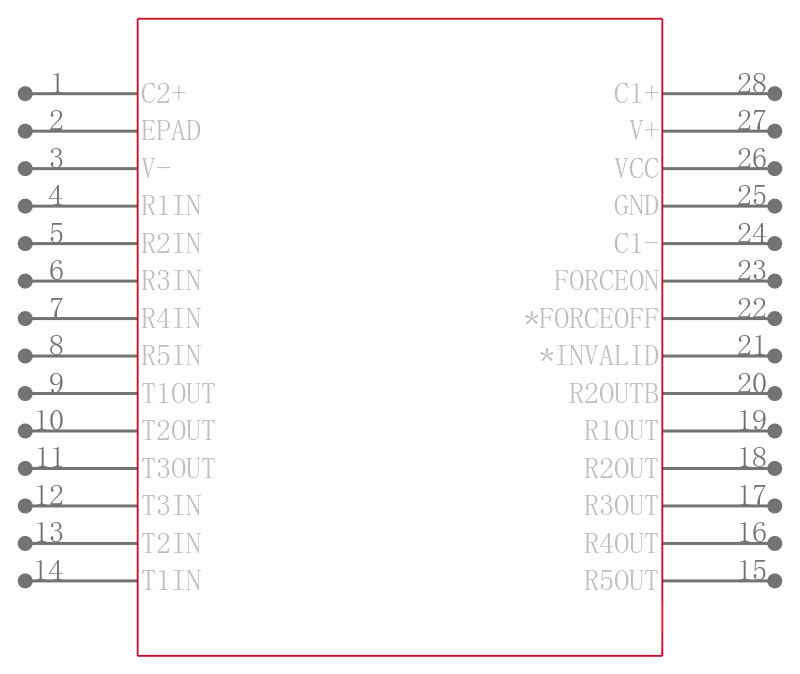

Line Transmitter/Receiver 3TR 3TX 5RX 28-Pin SSOP T/R

Win Source:
3/5 Transceiver Full RS232 28-SSOP
