MAX3237CAI

3.0V至5.5V ，低功耗，高达1Mbps ，真RS - 232收发器，使用四只0.1μF外部电容 3.0V to 5.5V, Low-Power, up to 1Mbps, True RS-232 Transceivers Using Four 0.1レF External Capacitors

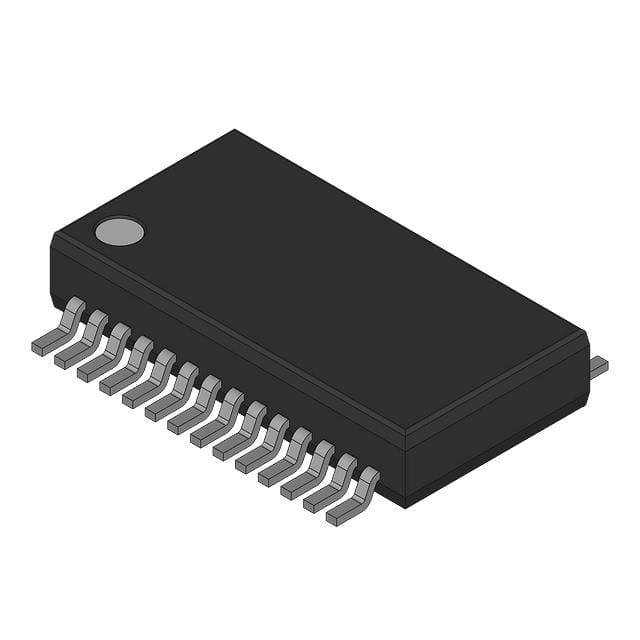

5/3 Transceiver Full RS232 28-SSOP

得捷:
IC TRANSCEIVER FULL 5/3 28SSOP

安富利:
The MAX3222/MAX3232/MAX3237/MAX3241 transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The devices require only four small 0.1µF external charge-pump capacitors. The MAX3222, MAX3232, and MAX3241 are guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The MAX3237 is guaranteed to run at data rates of 250kbps in the normal operating mode and 1Mbps in the MegaBaud™ operating mode, while maintaining RS-232 output levels.The MAX3222/MAX3232 have 2 receivers and 2 drivers. The MAX3222 features a 1µA shutdown mode that reduces power consumption and extends battery life in portable systems. Its receivers remain active in shutdown mode, allowing external devices such as modems to be monitored using only 1µA supply current. The MAX3222 and MAX3232 are pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively.The MAX3241 is a complete serial port 3 drivers/5 receivers designed for notebook and subnotebook computers. The MAX3237 5 drivers/3 receivers is ideal for fast modem applications. Both these devices feature a shutdown mode in which all receivers can remain active while using only 1µA supply current. Receivers R1 MAX3237/MAX3241 and R2 MAX3241 have extra outputs in addition to their standard outputs. These extra outputs are always active, allowing external devices such as a modem to be monitored without forward biasing the protection diodes in circuitry that may have VCCcompletely removed.The MAX3222, MAX3237, and MAX3241 are available in space-saving TSSOP and SSOP packages.
