MAX5479ETE+

MAXIM INTEGRATED PRODUCTS  MAX5479ETE+  非易失性数字电位器, 100 kohm, 双, I2C, 线性, ± 25%, 2.7 V

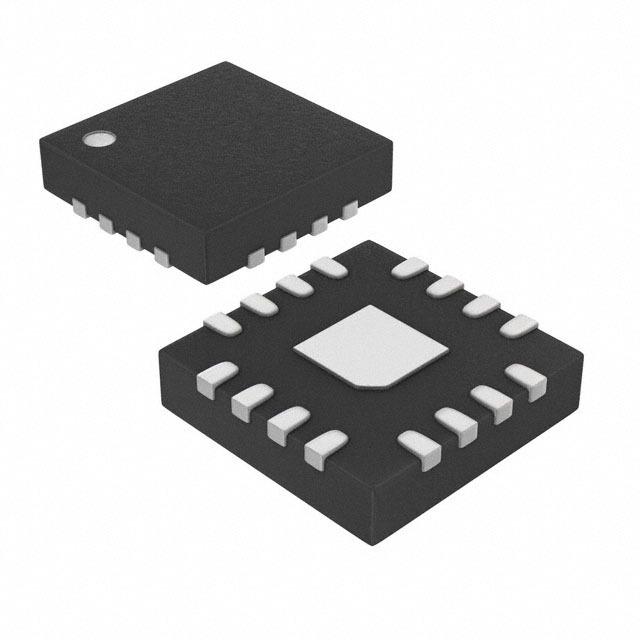

The is a dual non-volatile linear taper digital potentiometer in 16 pin TQFN package. This device combines two independently controlled 256 position potentiometers and the device control is achieved through I²C interface. The low temperature coefficient makes the device ideal for applications requiring a low temperature coefficient variable resistor such as low drift, programmable gain amplifier circuit configurations.

.

Supply voltage range is 2.7V to 5.25V

.

Operating temperature range from -40°C to 85°C

.

Power-on recall of wiper position from non-volatile memory

.

EEPROM write protection

.

Ratiometric temperature coefficient of 10ppm/°C

.

Static supply current of 1µA

.

Data rate of 400Kbps

.

Three address inputs allows eight unique address combinations

.

End to end resistance is 100Kohm at ±25% tolerance and temperature coefficient is 70ppm/°C

.

±0.5 LSB differential nonlinearity DNL, ±1 LSB integral nonlinearity INL in voltage divider mode
