MAX5497ETE+

MAXIM INTEGRATED PRODUCTS  MAX5497ETE+  非易失性数字电位器, 50 kohm, 双, SPI, 线性, ± 25%, 2.7 V

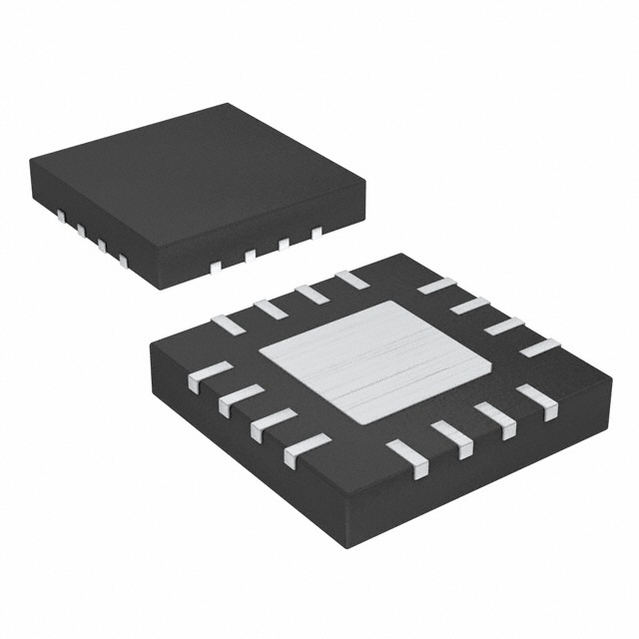

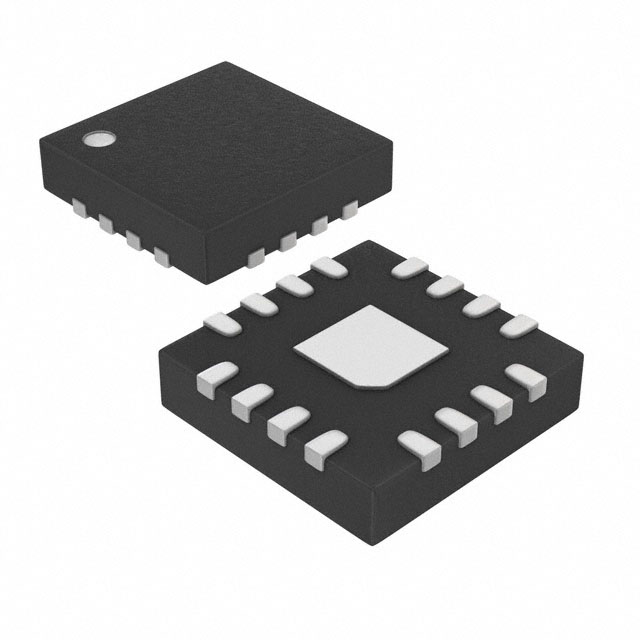

The is a 10bit dual non-volatile linear taper digital potentiometer in 16 pin TQFN package. The device combines a single 1024 position potentiometer and the internal programmable voltage dividers and variable resistors perform the function of a mechanical potentiometer but replaces the mechanics with a pin-configurable 3-wire serial SPI compatible interface. It is a 2 terminal variable resistor which is ideally suited for applications requiring low temperature coefficient voltage dividers such as low-drift, programmable gain amplifiers.

.

Supply voltage range is 2.7V to 5.25V single supply operation

.

Operating temperature range from -40°C to 85°C

.

Dual ±2.5V supply operation

.

Wiper position stored in non-volatile memory and recalled upon power-up

.

Data rate up to 7MHz

.

Ratiometric temperature coefficient of 5ppm/°C

.

End to end resistance is 50Kohm at ±25% tolerance and temperature coefficient is 35ppm/°C

.

1.5µA max standby current

.

Reliability of 50,000 wiper store cycles TA = 85°C

.

Reliability of 50 years wiper data retention TA = 85°C
