MAX5457EEE+

MAXIM INTEGRATED PRODUCTS  MAX5457EEE+  易失性数字电位器, SPST, 10 kohm, 双, 按钮, 对数（音频）, ± 30%, 2.7 V

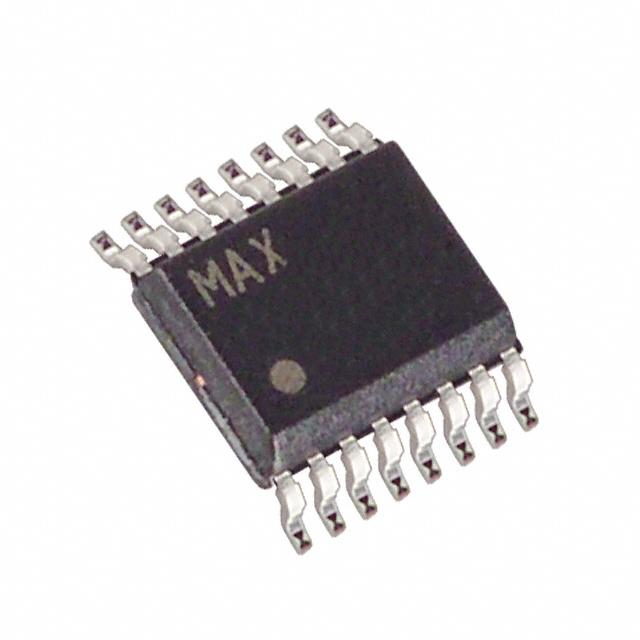

The is a dual, stereo audio logarithmic taper potentiometer with pushbutton interface in 16 pin QSOP package. MAX5457 has 32-tap points and feature a simple pushbutton interface that controls volume and balance in audio applications. This device has a SmartWiper control which eliminates the need for a microcomputer to increase the wiper transition rate and hold the control input low for more than 1s which advances the wiper at a rate of 4Hz for 4s and 16Hz per second. The device has 3-button interface with a MODE input that toggles between volume and balance control modes.

.

Supply voltage range is 2.7V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Smartwiper control provides accelerated wiper motion

.

Debounced pushbutton interface with internal pull-up resistors

.

Logarithmic taper with 2dB steps between taps

.

low 0.5µA standby supply current

.

Clickless switching

.

Mute function to -90dB typ

.

Power-on reset to -12dB wiper position

.

End to end resistance is 10Kohm at ±30% tolerance and temperature coefficient is 50ppm/°C
