MAX5423ETA+T

MAXIM INTEGRATED PRODUCTS  MAX5423ETA+T  非易失性数字电位器, 100 kohm, 单, SPI, 线性, ± 25%, 2.7 V

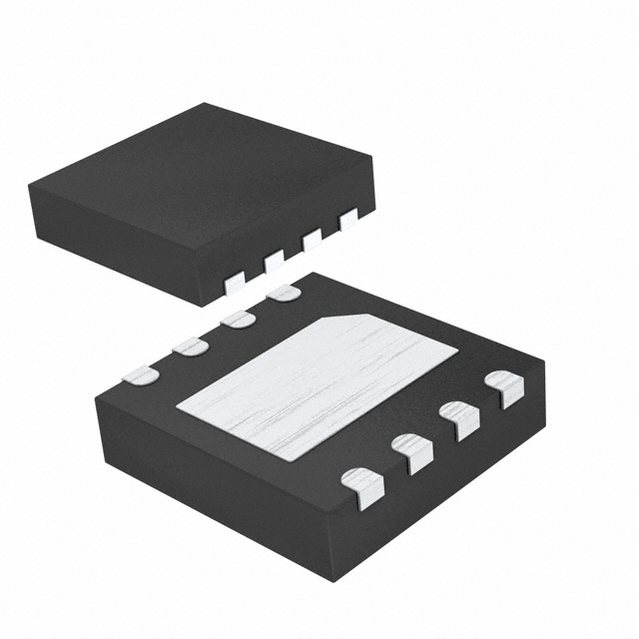

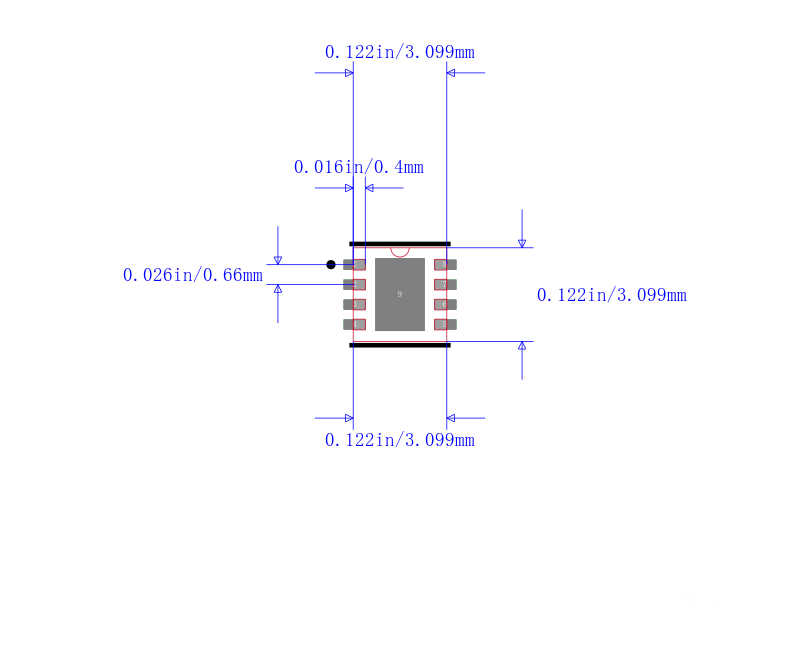

The is a 256-tap, non-volatile digital potentiometer in 8 pin TDFN package. This device feature an internal non-volatile EEPROM to store the wiper position for initialization during power-up. The 3-wire SPI-compatible serial interface allows communication at data rates up to 5MHz, it minimizes board space and reduce interconnection complexity in many applications. Typical applications are low-temperature-coefficient variable resistor, low-drift programmable gain amplifier circuit configurations.

.

Supply voltage range is 2.7V to 5.25V

.

Operating temperature range from -40°C to 85°C

.

Supports 3-wire SPI interface

.

Linear taper digital potentiometer

.

End to end resistance is 100Kohm

.

End to end resistance temperature coefficient is 35ppm/°C

.

Ratiometric temperature coefficient is 5ppm/°C

.

500nA typ static supply current

.

±0.5LSB DNL in voltage divider mode

.

±0.5LSB INL in voltage divider mode
