MX7524LCSE+

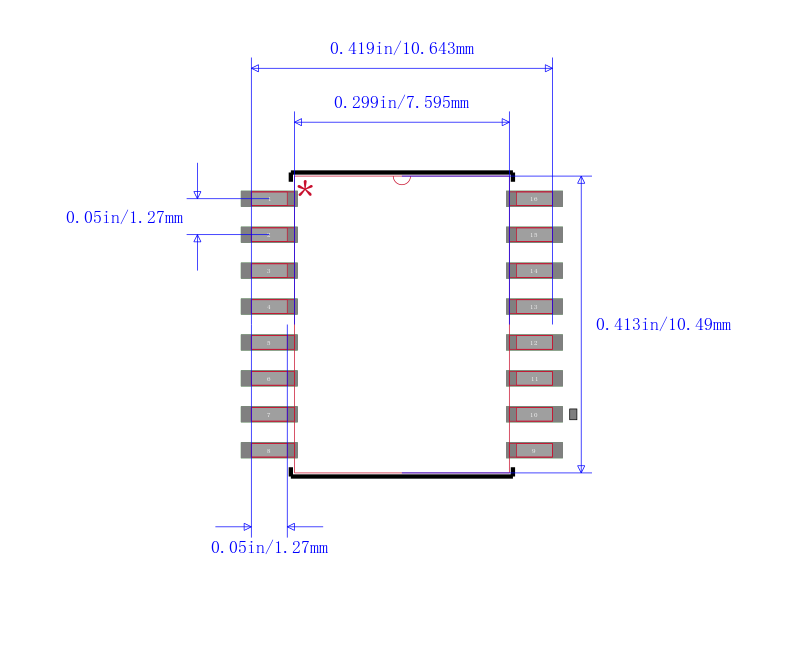

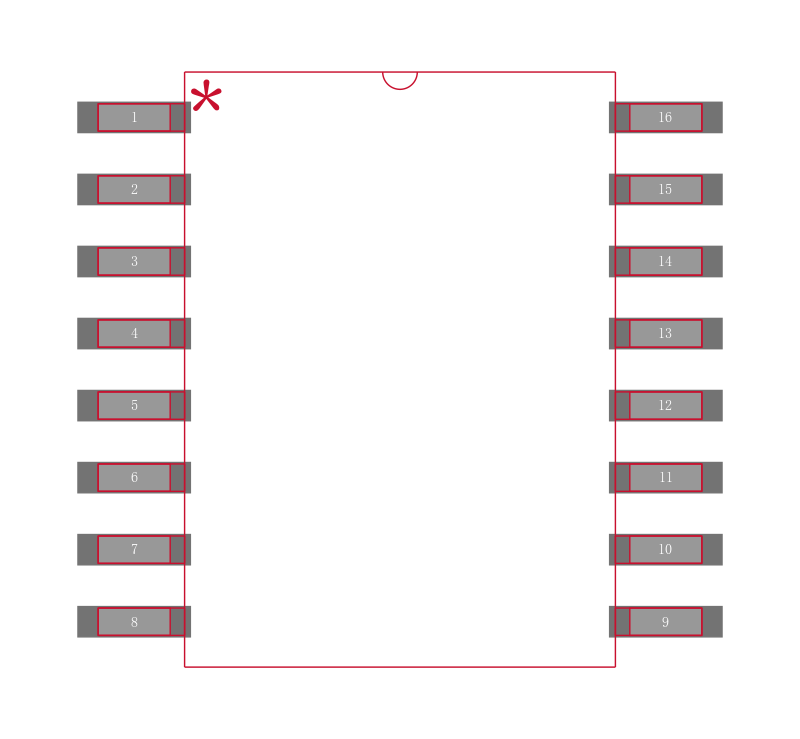

MAXIM INTEGRATED PRODUCTS  MX7524LCSE+  数模转换器, 精准, 8 bit, 单极性, 5V 至 15V, NSOIC, 16 引脚

The is a CMOS 8bit buffered multiplying digital to analogue converter DAC in 16 pin NSOIC package. It will interface directly with most microprocessors. The On-chip input latches make the DAC interface similar to a RAM write cycle where active-low CS and active-low WR are the only control inputs required. The linearity up to ±1/8LSB is available and power consumption is less than 10mW. This 8bit DAC consists of an thin-film R-2R resistor array with CMOS current steering switches. It is used in µP controlled gain, function generators, digital control systems, bus structured instruments and automatic test equipment.

.

Supply voltage range is 5V to 15V

.

Operating temperature range from 0°C to 70°C

.

Supports parallel interface, unipolar channel type

.

Monotonicity over full temperature range

.

TTL/CMOS compatible at +5V

.

Microprocessor compatible

.

On-chip data latches

.

8bit, 9bit & 10bit linearity
