MAX5594EUG+

MAXIM INTEGRATED PRODUCTS  MAX5594EUG+  数模转换器, 缓冲, 快速设置, 电压输出, 8 bit, 串行, 2.7V 至 5.25V, TSSOP, 24 引脚

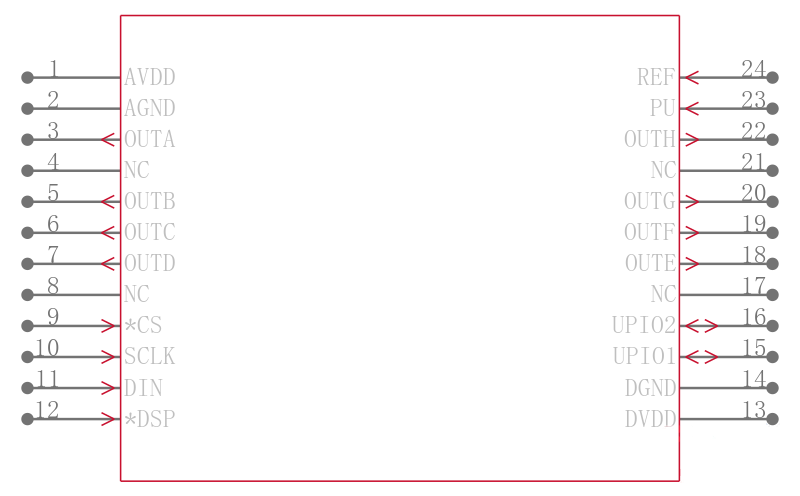

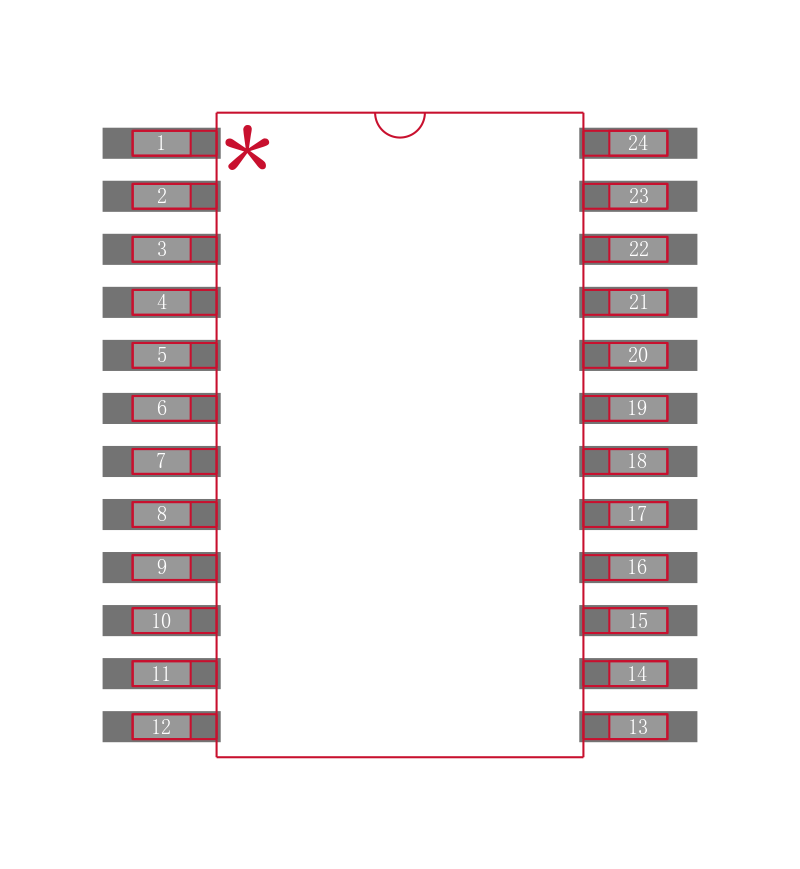

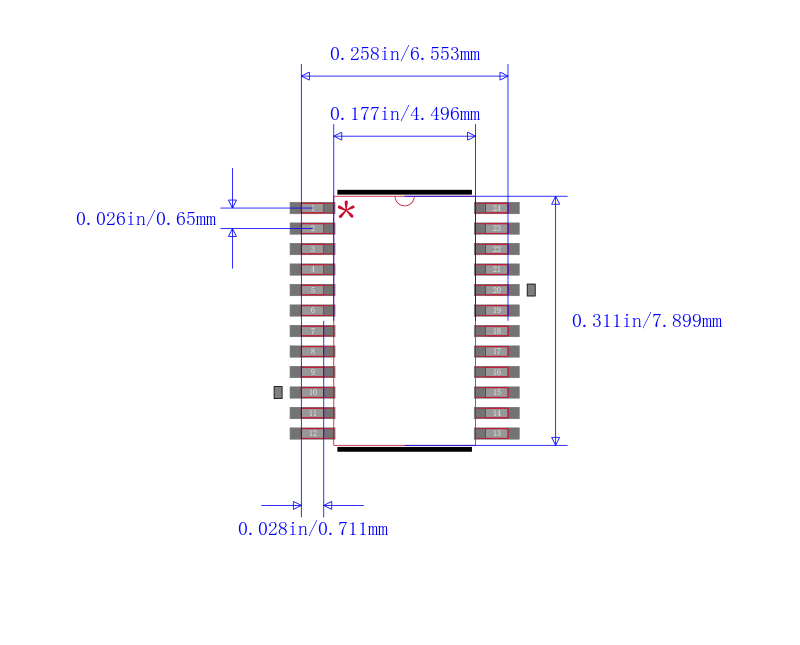

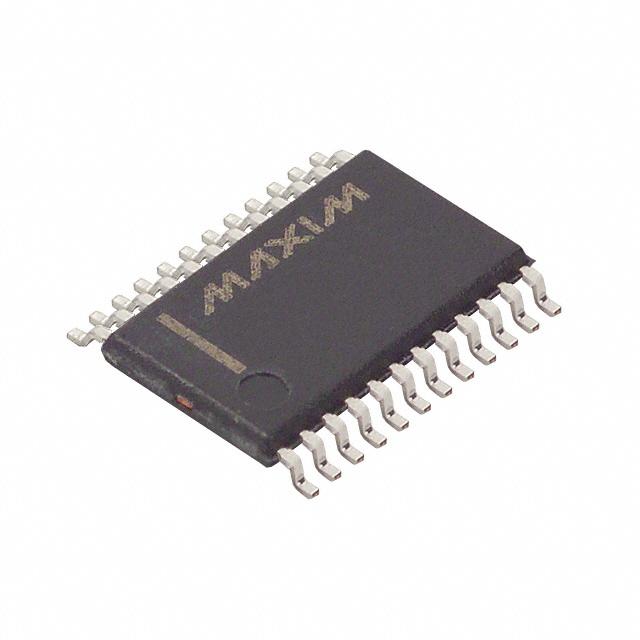

The is a buffered, fast-settling, octal, 8bit, voltage-output digital to analogue converter DAC in 24 pin TSSOP package. It operate from a +2.7V to +5.25V analogue supply and a separate +1.8V to +5.25V digital supply. The 20MHz 3-wire serial interface is compatible with SPI, QSPI, MICROWIRE and digital signal processor DSP protocol applications. It share a common serial interface in direct-access or daisy-chained configuration. It provides two multifunction, user-programmable, digital I/O ports. The externally selectable power-up states of the DAC outputs are either zero scale, midscale or full scale. Software-selectable FAST and SLOW settling modes decrease settling time in FAST mode or reduce supply current in SLOW mode. It is used in automatic test equipment ATE, digital offset and gain adjustment, automatic tuning, programmable attenuators and power amplifier control.

.

Supply voltage range is 2.7V to 5.25V

.

Operating temperature range from -40°C to 85°C

.

3µs max 12bit settling time to 1/2LSB, integral nonlinearity is 1/2LSB max

.

Monotonic, ±1LSB max DNL

.

Glitch-free outputs power-up to zero scale, midscale or full scale controlled by PU pin

.

Unity-gain or force-sense-configured output buffers

.

PSRR of 200µV/V, Wake-Up Time of 40µs

.

Voltage-output slew rate is 3.6V/µs at fast mode, shutdown supply current is 1µAmax

.

DAC to DAC crosstalk of 15nVs, operating supply current is 8mA at unity gain FAST mode
