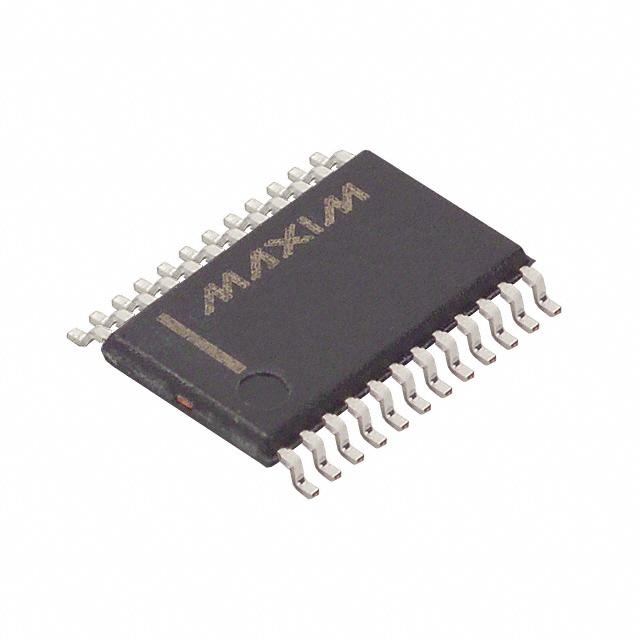

MAXIM INTEGRATED PRODUCTS MAX5590BEUG+ 数模转换器, 缓冲, 快速设置, 电压输出, 12 bit, 串行, 2.7V 至 5.25V, TSSOP, 24 引脚
The is a buffered, fast-settling, octal, 12bit, voltage-output digital to analogue converter DAC in 24 pin TSSOP package. It operate from a +2.7V to +5.25V analogue supply and a separate +1.8V to +5.25V digital supply. The 20MHz 3-wire serial interface is compatible with SPI, QSPI, MICROWIRE and digital signal processor DSP protocol applications. It share a common serial interface in direct-access or daisy-chained configuration. It provides two multifunction, user-programmable, digital I/O ports. The externally selectable power-up states of the DAC outputs are either zero scale, midscale or full scale. Software-selectable FAST and SLOW settling modes decrease settling time in FAST mode or reduce supply current in SLOW mode. It is used in automatic test equipment ATE, digital offset and gain adjustment, automatic tuning, programmable attenuators and power amplifier control.
通道数 8
针脚数 24
位数 12
耗散功率 1111 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1.11 W
数模转换数DAC 8
电源电压 2.7V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 24
封装 TSSOP-24
高度 0.9 mm
封装 TSSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Signal Processing, 信号处理, Motor Drive & Control, 电机驱动与控制, Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX5590BEUG+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX5590BEUG 美信 | 完全替代 | MAX5590BEUG+和MAX5590BEUG的区别 |
MAX5590BEUG+T 美信 | 类似代替 | MAX5590BEUG+和MAX5590BEUG+T的区别 |
MAX5590BEUG-T 美信 | 类似代替 | MAX5590BEUG+和MAX5590BEUG-T的区别 |
