MAX5104EEE+

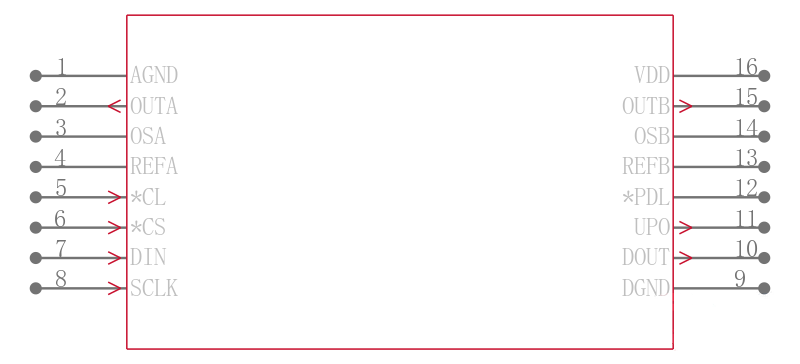

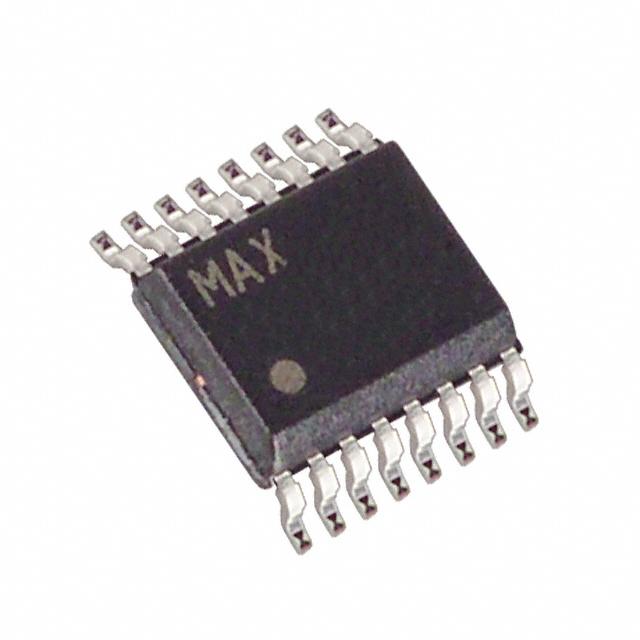

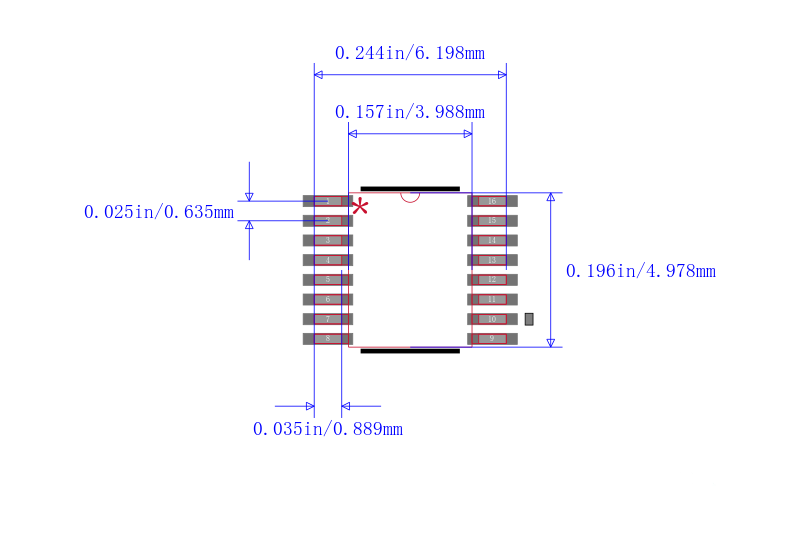

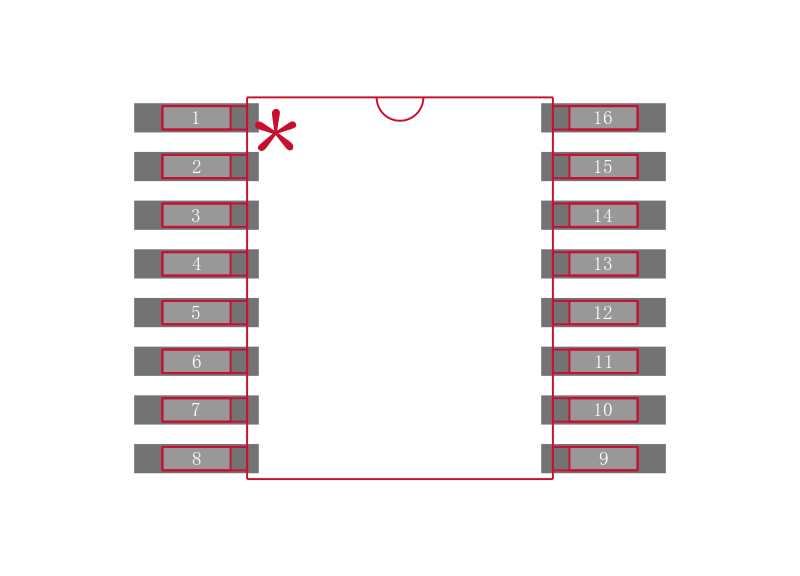

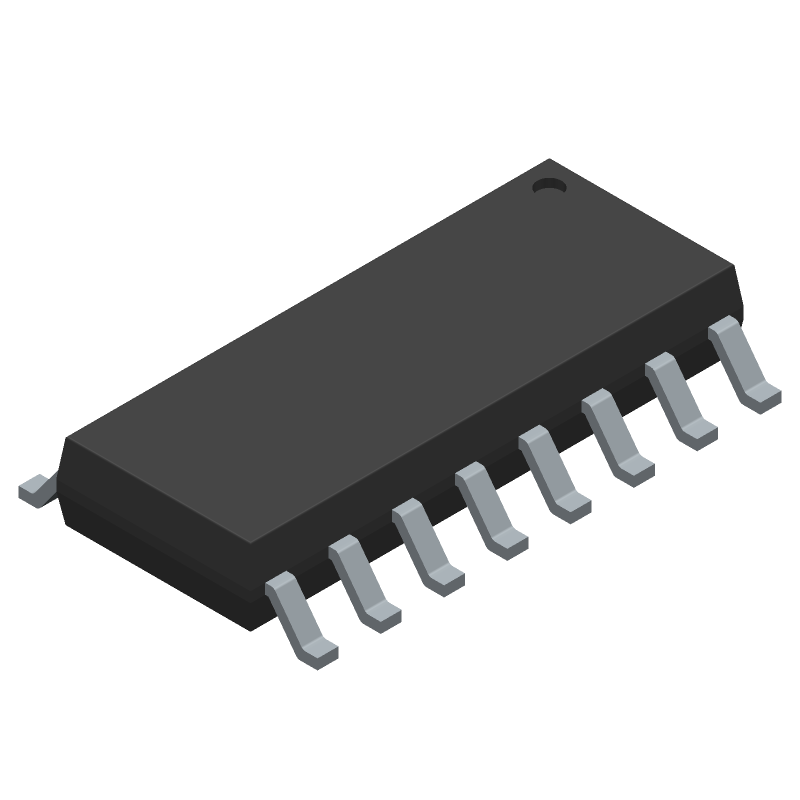

MAXIM INTEGRATED PRODUCTS  MAX5104EEE+  数模转换器, 低功率, 12 bit, 串行, 4.5V 至 5.5V, QSOP, 16 引脚

The is a dual, voltage output, 12bit digital to analogue converter DAC with serial interface in 16 pin QSOP package. This low power DAC is easily configured with a 3-wire serial interface. The device includes a 16bit data-in/data-out shift register and each DAC has a double buffered input composed of an input register and a DAC register. The trimmed internal resistors produce an internal gain of +2V/V that maximizes output voltage swing. The amplifier"s offset-adjust pin allows for a DC shift in the DAC"s output. Both DACs use an inverted R-2R ladder network that produces a weighted voltage proportional to the input voltage value. Each DAC has its own reference input to facilitate independent full-scale values. It is used in digital offset and gain adjustment, microprocessor-controlled systems, motion control and automatic test equipment ATE.

.

Supply voltage range is 4.5V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

12bit dual DAC with internal gain of +2V/V

.

Rail to rail output swing, digital crosstalk of 5nVs

.

Settling time is 12µs, reference 3dB bandwidth of 300KHz at input code = 1FFE hex

.

Low quiescent current of 500µA normal operation, 2µA power-down mode

.

SPI/QSPI/MICROWIRE compatible

.

Power-on reset clears registers and DACs to zero

.

Maximum PSRR of 600µV/V at 4.5V

.

INL is ±4LSB, DNL is ±1LSB and adjustable output offset
