数模转换器- DAC 8-Bit 4Ch Precision DAC

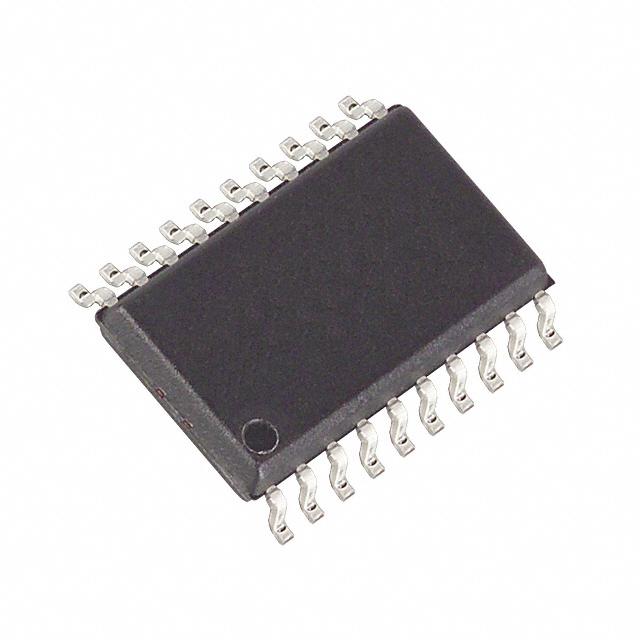

8 Bit Digital to Analog Converter 4 20-SOIC
得捷:
IC DAC 8BIT V-OUT 20SOIC
贸泽:
数模转换器- DAC 8-Bit 4Ch Precision DAC
安富利:
The MAX509/MAX510 are quad, serial-input, 8-bit voltage-output digital-to-analog converters DACs. They operate with a single +5V supply or dual ±5V supplies. Internal, precision buffers swing rail-to-rail. The reference input range includes both supply rails.The MAX509 has four separate reference inputs, allowing each DAC"s full-scale range to be set independently. 20-pin DIP, SSOP, and SO packages are available. The MAX510 is identical to the MAX509 except it has two reference inputs, each shared by two DACs. The MAX510 is housed in space-saving 16-pin DIP and SO packages.The serial interface is double-buffered: A 12-bit input shift register is followed by four 8-bit buffer registers and four 8-bit DAC registers. A 12-bit serial word is used to load data into each register. Both input and DAC registers can be updated independently or simultaneously with single software commands. Two additional asynchronous control pins provide simultaneous updating active-low LDAC or clearing active-low CLR of input and DAC registers.The interface is compatible with Microwire™ and SPI™/QSPI™. All digital inputs and outputs are TTL/CMOS compatible. A buffered data output provides for readback or daisy-chaining of serial devices.
DeviceMart:
IC DAC 8BIT QUAD R-R 20-SOIC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX509BEWP+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX509AEWP+ 美信 | 完全替代 | MAX509BEWP+和MAX509AEWP+的区别 |
MAX509BEWP+T 美信 | 完全替代 | MAX509BEWP+和MAX509BEWP+T的区别 |
MAX509AEWP 美信 | 完全替代 | MAX509BEWP+和MAX509AEWP的区别 |
