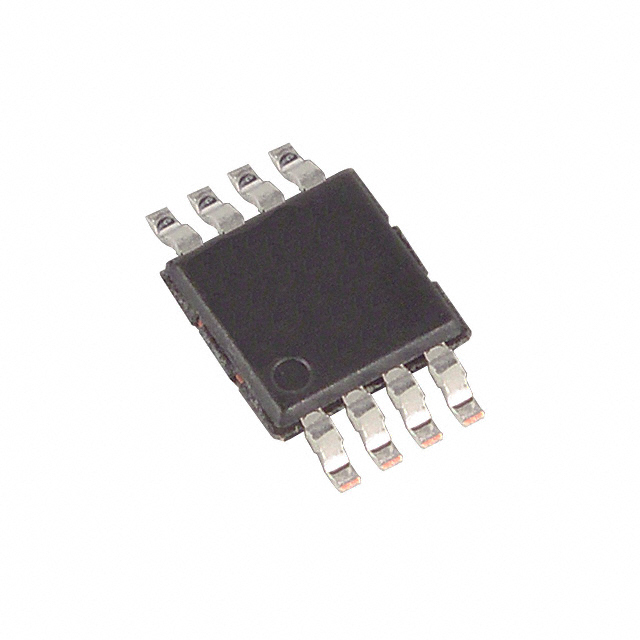

MAX5441AEUA+

MAXIM INTEGRATED PRODUCTS  MAX5441AEUA+  数模转换器, 精准, 16 bit, 串行, 4.5V 至 5.5V, µMAX, 8 引脚

The is a serial input, voltage output, 16bit digital to analogue converter DAC in 8 pin µMAX package. This device operates from low +5V single supply and it provides 16bit performance ±2LSB INL and ±1LSB DNL over temperature without any adjustments. Unbuffered DAC output result in a low supply current of 120µA and low offset error of 2LSB. The DAC output ranges from 0 to VREF and a 16bit serial word is used to load data into DAC latch. The 25MHz, 3-wire serial interface is compatible with SPI/QSPI/MICROWIRE and can interface directly with optocouplers for applications requiring isolation. A power-on reset circuit clears the DAC output to code 0 when power is initially applied and logic low on complementary CLR asynchronously clears the DAC output to code 0 independent of the serial interface. The MAX5441A is used in high resolution offset and gain adjustment, automated test equipment and data acquisition systems.

.

Supply voltage range from 4.5V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Fast settling time of 1µs

.

VREF range extends to VDD

.

Reference -3dB bandwidth of 1MHz

.

Voltage output slew rate of 15V/µs

.

Power supply rejection PSR of ±1LSB at 4.5V

.

Unbuffered voltage output directly drives 60Kohm loads

.

Schmitt trigger inputs for direct optocoupler interface
