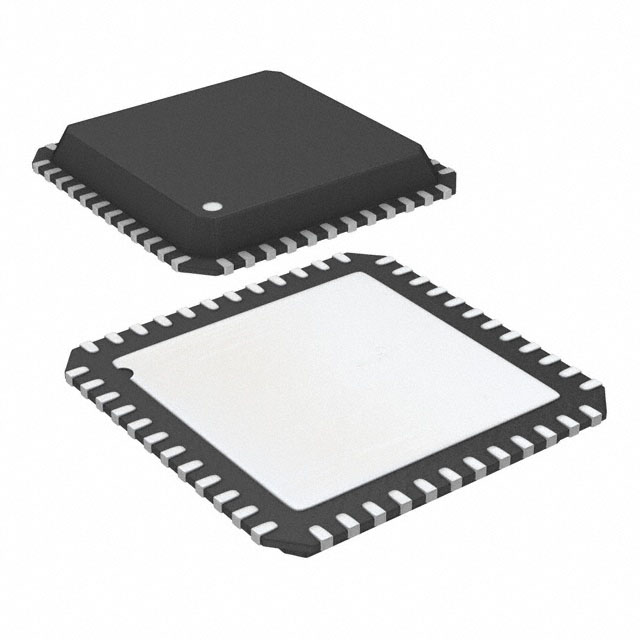

MAXIM INTEGRATED PRODUCTS MAX5884EGM+D 数模转换器, 高动态性能, CMOS输出, 14 bit, 3.135V 至 3.465V, QFN, 48 引脚
The is a 3.3V, 14bit, 200Msps high dynamic performance DAC with CMOS inputs in 48 pin QFN package. It is designed to meet the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications. This DAC offers exceptional dynamic performance such as 77dBc spurious-free dynamic range SFDR at fOUT = 10MHz. The DAC supports update rates of 200Msps at a power dissipation of less than 200mW. The MAX5884 utilizes a current-steering architecture which supports a full-scale output current range of 2mA to 20mA and allows a differential output voltage swing between 0.1VP-P and 1VP-P. The MAX5884 features an integrated 1.2V bandgap reference and control amplifier to ensure high accuracy and low noise performance. A separate reference input pin enables the user to apply an external reference source for optimum flexibility and to improve gain accuracy.
针脚数 48
位数 14
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 1
电源电压 3.135V ~ 3.465V
安装方式 Surface Mount
引脚数 48
封装 QFN-48
封装 QFN-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 通信与网络, Communications & Networking, Signal Processing, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX5884EGM+D Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX5884EGM+TD 美信 | 完全替代 | MAX5884EGM+D和MAX5884EGM+TD的区别 |
AD9744ARZ 亚德诺 | 功能相似 | MAX5884EGM+D和AD9744ARZ的区别 |
DAC8871SBPWR 德州仪器 | 功能相似 | MAX5884EGM+D和DAC8871SBPWR的区别 |
