MAX5250ACAP+

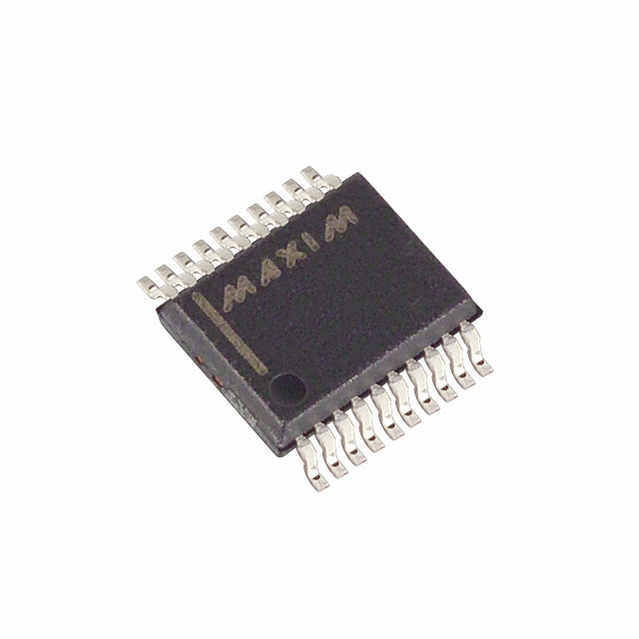

MAXIM INTEGRATED PRODUCTS  MAX5250ACAP+  数模转换器, 低功率, 10 bit, 串行, 4.5V 至 5.5V, SSOP, 20 引脚

The is a low power, quad, 10bit voltage output digital to analogue converter with serial interface in 20 pin SSOP package. It combines four low power, voltage output, 10bit DACs and four precision output amplifiers. In addition to the four voltage outputs each amplifier"s negative input is also available to the user. This facilitates specific gain configurations, remote sensing and high output drive capacity. It also include software shutdown, hardware shutdown lockout, an active-low reset that clears all registers and DACs to zero, a user-programmable logic output and a serial data output. Each DAC has a double-buffered input organized as an input register followed by a DAC register. A 16bit serial word loads data into each input/DAC register. The 3 wire serial interface is compatible with SPI/QSPI and MICROWIRE. It allows the input and DAC registers to be updated independently or simultaneously with a single software command.

.

Supply voltage range is 4.5V to 5.5V

.

Operating temperature range from 0°C to 70°C

.

Low supply current of 0.85mA normal operation and 10µA shutdown mode

.

User programmable digital output

.

Schmitt trigger inputs for direct optocoupler interface

.

Error is ±1/2LSB

.

TTL/CMOS logic compatible
