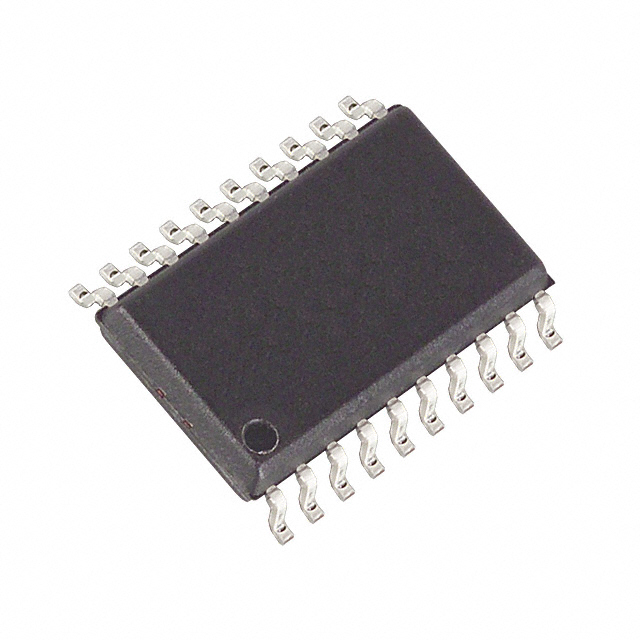

MAXIM INTEGRATED PRODUCTS MAX506AEWP+ 数模转换器, 精准, 8 bit, 单极性, 4.5V 至 5.5V, WSOIC, 20 引脚
The is a quad, 8bit digital to analogue converter DAC with rail to rail outputs in 20 pin WSOIC package. The device operates with a single +5V supply or a dual ±5V supplies. Internal precision output buffers swing rail to rail and reference input range includes both supply rails. Offset, gain and linearity are factory calibrated to provide 1LSB total unadjusted error TUE over the full operating temperature range. It has separate input latches for each of its four DACs, data is transferred to the input latches from a common 8bit input port. The DACs are individually selected through address inputs A0 and A1, updated by bringing active-low WR low and share a common reference input. This device is used in arbitrary function generators, automatic test equipment, digital offset/gain adjustment, minimum component count analogue systems and programmable attenuators.
通道数 4
针脚数 20
位数 8
耗散功率 800 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
数模转换数DAC 4
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

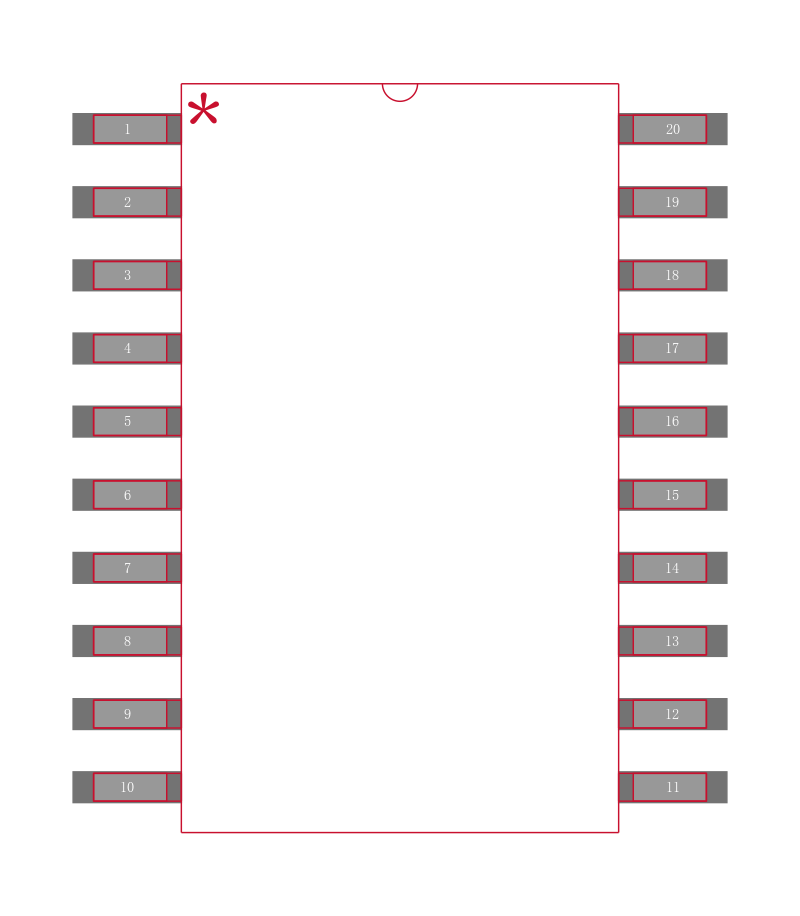

封装 SOIC-20
长度 13 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
制造应用 信号处理, Industrial, 工业, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX506AEWP+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX506BCWP+T 美信 | 完全替代 | MAX506AEWP+和MAX506BCWP+T的区别 |
MAX506ACWP+T 美信 | 完全替代 | MAX506AEWP+和MAX506ACWP+T的区别 |
MAX506BEWP+ 美信 | 完全替代 | MAX506AEWP+和MAX506BEWP+的区别 |
