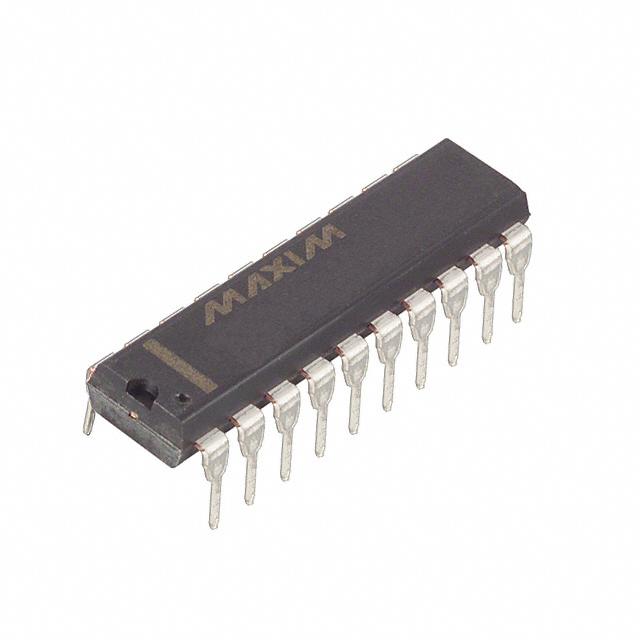

MAXIM INTEGRATED PRODUCTS MX7548KN+ 数模转换器, 精准, 12 bit, 并行, 11.4V至15.75V, 4.75V至5.25V, DIP, 20 引脚
The is a CMOS, 8bit microprocessor compatible, 12bit DAC in 20 pin DIP package. The CMOS current output DAC with a versatile interface uses 8bit bus for interfacing microprocessors. It accepts data into its input register in two bytes in either left or right justified format. The standard write input, chip select most significant byte, chip select least significant byte inputs control the data load operation. A separate load DAC input controls transfer of data from the input register to the DAC register allowing for simultaneous update of all DACs in multi DAC systems. A data override input forces the DAC output to full scale or zero code without altering the contents of the input registers. This permits the user to perform DAC calibration conveniently without having to load calibration data into DAC. Typical applications include digitally controlled filters, programmable gain amplifiers, automatic test equipment, motion control systems and programmable power supplies.
工作电压 4.75V ~ 15.75V
通道数 1
针脚数 20
位数 12
工作温度Max 70 ℃
工作温度Min 0 ℃
数模转换数DAC 1
电源电压Max 15.75 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 20
封装 DIP-20
长度 26.54 mm
高度 4.45 mm
封装 DIP-20
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Signal Processing, Industrial, 工业, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MX7548KN+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MX7548KN 美信 | 完全替代 | MX7548KN+和MX7548KN的区别 |
AD7545AKNZ 亚德诺 | 功能相似 | MX7548KN+和AD7545AKNZ的区别 |
AD7549JNZ 亚德诺 | 功能相似 | MX7548KN+和AD7549JNZ的区别 |
