MAX5480BCEE+

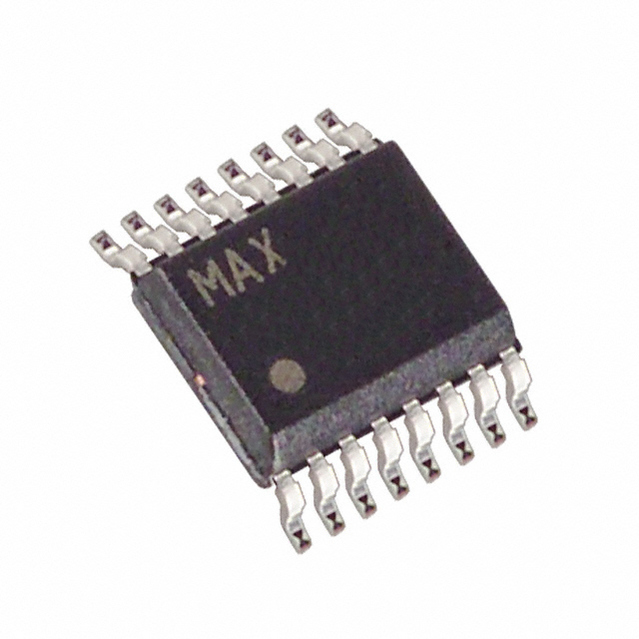

MAXIM INTEGRATED PRODUCTS  MAX5480BCEE+  数模转换器, 精准, 8 bit, 并行, 5V, QSOP, 16 引脚

The is a single, parallel, 8bit digital to analogue converter DAC in 16 pin QSOP package. This CMOS DAC interfaces directly with most microprocessors. On-chip input latches make the DAC load cycle interface similar to RAM write cycle where active-low CS and active-low WR are the only control inputs required. Linearity of ±1/2LSB is provided over temperature and power consumption is less than 500µW. The MAX5480 can be operated in either voltage output or current output mode. The device is typically used in digitally adjusted power supplies, programmable gain, automatic test equipments, battery powered instruments, VCO frequency control and RF transmit control in portable radios.

.

5V single supply operation

.

Operating temperature range from 0°C to 70°C

.

Supports 8bit parallel interface

.

VOUT or IOUT operation

.

100µA low power consumption

.

Integral nonlinearity INL of ±1/2LSB and differential nonlinearity DNL of ±1LSB

.

Gain error of ±1LSB TA = TMIN to TMAX and gain temperature coefficient of ±2ppm/°C

.

Power supply rejection PSR of 0.002%FSR/% at TA = +25°C

.

Supply current of 100µA at TA = +25°C digital inputs at 0V or VDD

.

Monotonic over temperature
