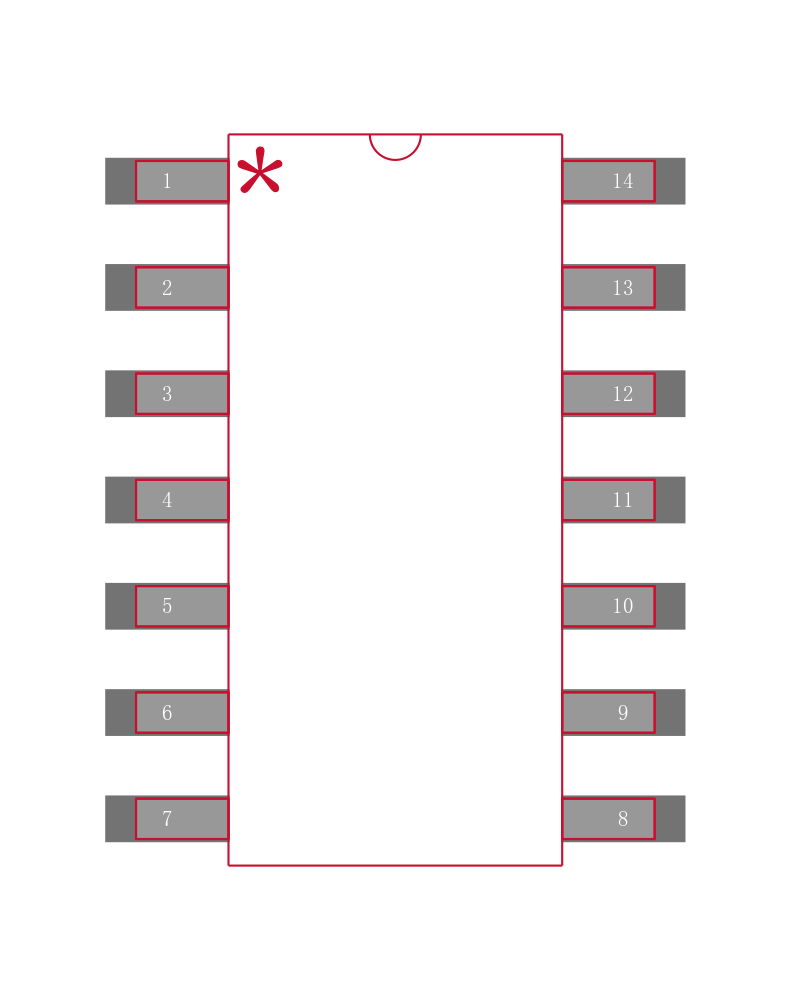

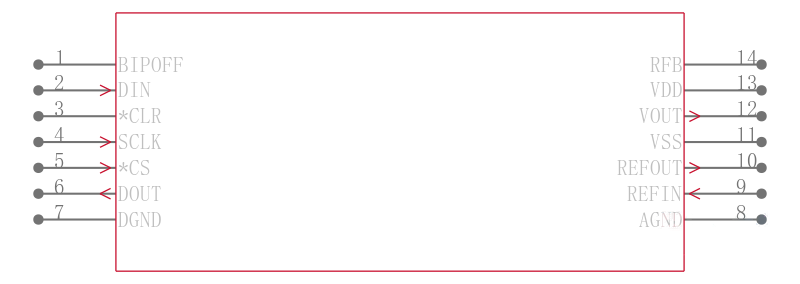

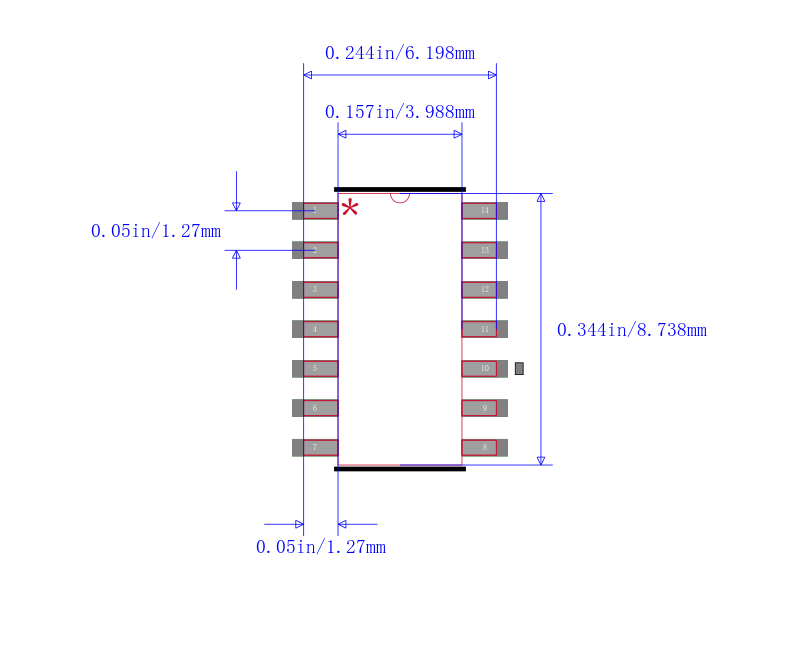

MAX504CSD

5V ，低功耗，电压输出，串行10位DAC 5V, Low-Power, Voltage-Output, Serial 10-Bit DACs

General Description

The MAX504/MAX515 are low-power, voltage-output, 10-bit digital-to-analog converters DACs specified for

single +5V power-supply operation. The MAX504 can also be operated with ±5V supplies. The MAX515 draws only 140µA, and the MAX504 with internal reference draws only 260µA. The MAX515 comes in 8-pin DIP and SO packages, while the MAX504 comes in 14-pin DIP and SO packages. Both parts have been trimmed for offset voltage, gain, and linearity, so no further adjustment is necessary.

Features

♦Operate from Single +5V Supply

♦Buffered Voltage Output

♦Internal 2.048V Reference MAX504

♦140µA Supply Current MAX515

♦INL = ±1/2LSB max

♦Guaranteed Monotonic Over Temperature

♦Flexible Output Ranges:

   0V to VDDMAX504/MAX515

   VSSto VDDMAX504

♦8-Pin SO/DIP MAX515

♦Power-On Reset

♦Serial Data Output for Daisy-Chaining

Applications

Battery-Powered Test Instruments

Digital Offset and Gain Adjustment

Battery-Operated/Remote Industrial Controls

Machine and Motion Control Devices

Cellular Telephones
