MAX11208AEUB+

MAXIM INTEGRATED PRODUCTS  MAX11208AEUB+.  芯片, 模数转换器, 20位, 120SPS, uMAX-10

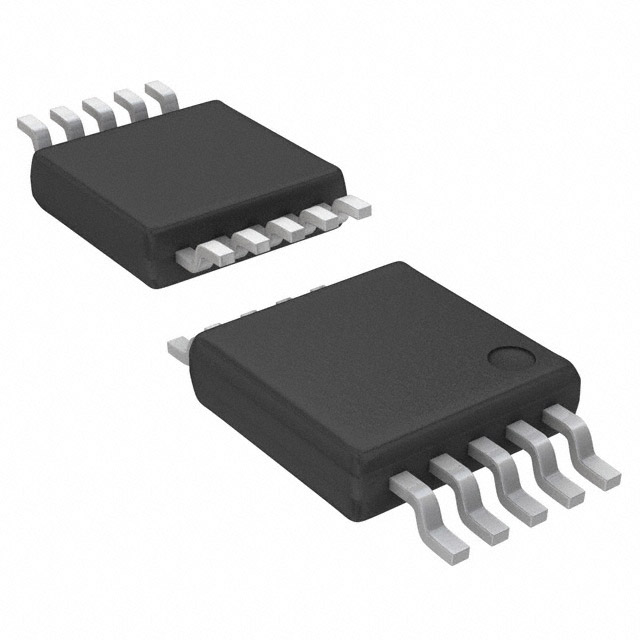

The is a 20bit, single channel, ultra low power, delta-sigma ADC with 2-wire serial interface in 10 pin µMAX package. This device provides the highest resolution per unit power in the industry and is optimized for applications that require very high dynamic range with low power, such as sensors on a 4mA to 20mA industrial control loop. The MAX11208 provides a high-accuracy internal oscillator that requires no external components. When used with the specified data rates, the internal digital filter provides more than 80dB rejection of 50Hz or 60Hz line noise. Typical applications include sensor measurement temperature and pressure, portable instrumentation, battery applications and weigh scales.

.

Supply voltage range is 1.7V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

19bit noise free resolution at 120sps

.

3ppm INL, fully differential signal inputs and fully differential reference inputs

.

Operating mode current drain is less than 300µA and sleep mode current drain is less than 0.1µA

.

Analogue supply voltage range from 2.7V to 3.6V

.

Internal system clock is 2.4576MHz

.

2-wire serial interface with clock input and data output

.

On demand offset and gain self calibration

.

±2KV ESD protection
