低功耗，多功能，多相AFE与谐波和篡改检测 Low-Power, Multifunction, Polyphase AFE with Harmonics and Tamper Detect

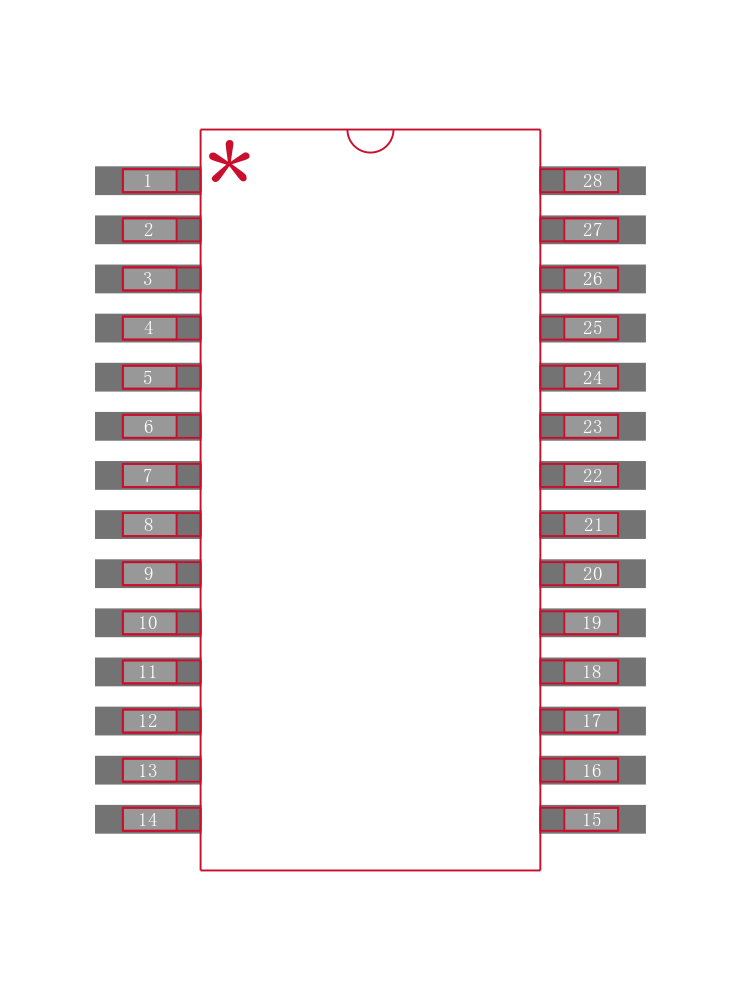

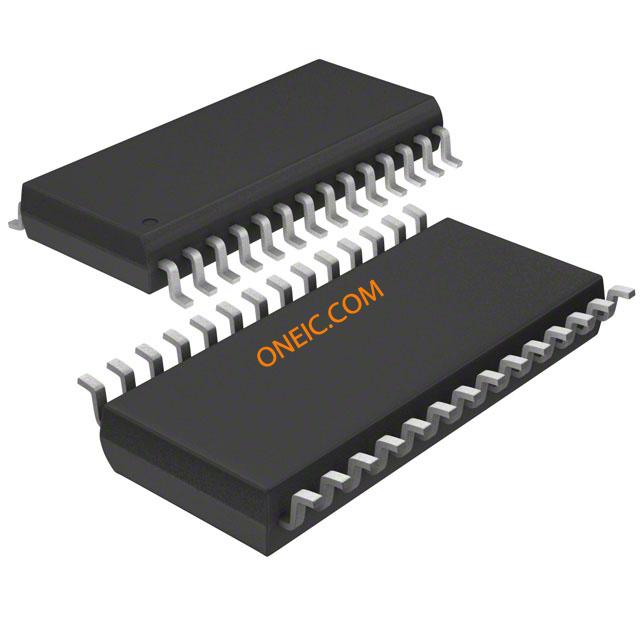

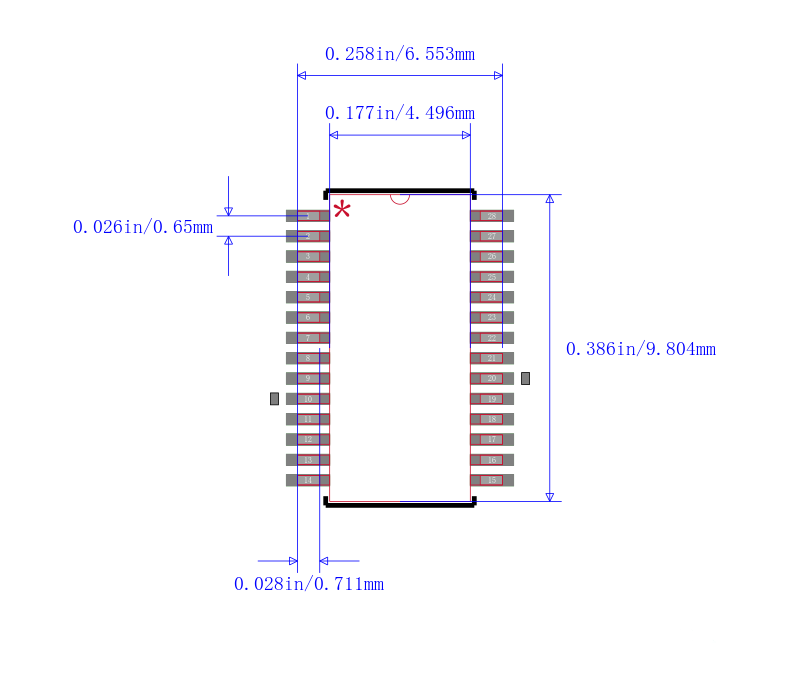

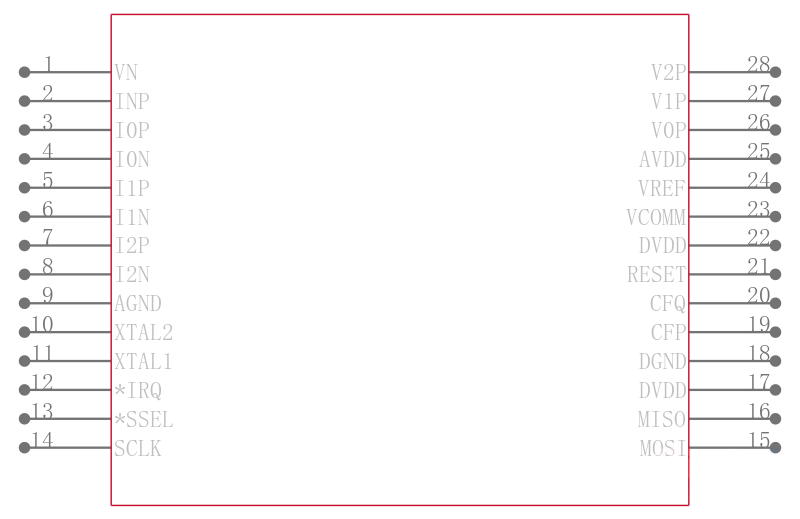

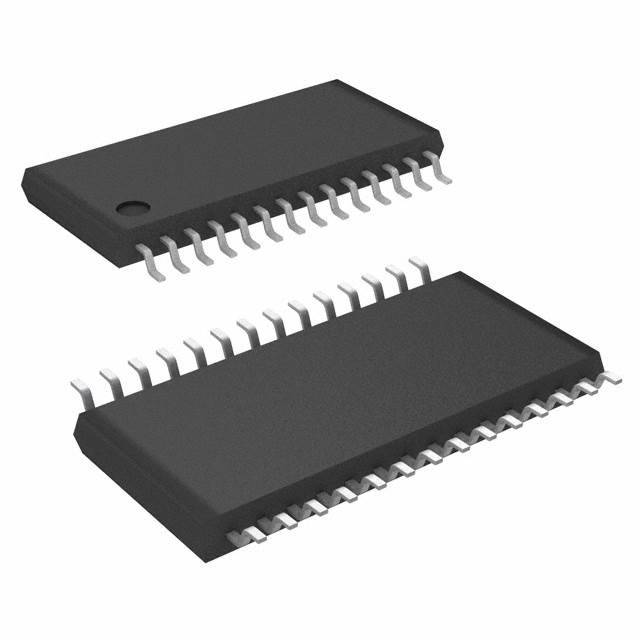

8 Channel AFE Bit 140mW 28-TSSOP
得捷:
IC AFE 8 CHAN 28TSSOP
安富利:
The MAXQ3183 is a dedicated electricity measurement front-end that collects and calculates polyphase voltage, current, power, energy, and many other metering and power-quality parameters of a polyphase load. The computed results can be retrieved by an external master through the on-chip serial peripheral interface SPI™ bus. This bus is also used by the external master to configure the operation of the MAXQ3183 and monitor the status of operations.The MAXQ3183 performs voltage and current measurements using an integrated ADC that can measure up to seven external differential signal pairs. An eighth differential signal pair is used to measure the die temperature. An internal amplifier automatically adjusts the current channel gain to compensate for low-current channel-signal levels.
