MAX11128ATI+

1MSPS ，低功耗，串行12位/ 10位/ 8位，4 / 8 / 16通道ADC 1Msps, Low-Power, Serial 12-/10-/8-Bit,4-/8-/16-Channel ADCs

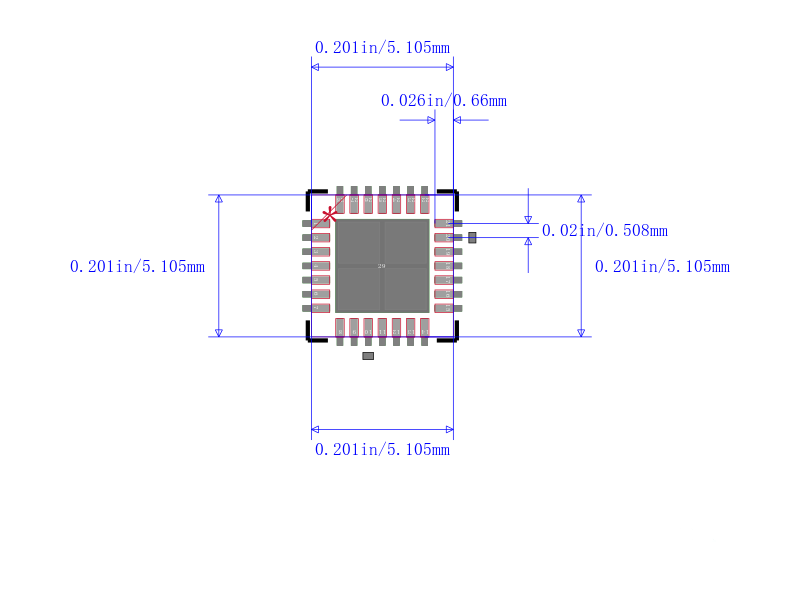

The is a 1Msps, low-power, serial 12bit, 16 channel ADC in 28 pin TQFN-EP package. This 12bit ADC with external reference and industry-leading 1.5MHz, full linear bandwidth, high speed, low-power, serial output SAR ADC. It includes both internal and external clock modes. This device features scan mode in both internal and external clock modes. The internal clock mode features internal averaging to increase SNR. The external clock mode features the SampleSet technology, a user-programmable analogue input channel sequencer. The SampleSet approach provides greater sequencing flexibility for multichannel applications while alleviating significant microcontroller or DSP communication overhead. The internal clock mode features an integrated FIFO allowing data to be sampled at high speeds and then held for readout at any time or at a lower clock rate. Internal averaging is also supported in this mode improving SNR for noisy input signals.

.

Supply voltage range from 2.35V to 3.6V

.

Two software-selectable bipolar input range from ±VREF+/2, ±VREF+

.

Single-ended inputs, fully differential pairs or pseudo-differential inputs

.

5.4mW at 1Msps with 3V supplies, 2µA full-shutdown current

.

Flexible input configuration across all channels

.

High accuracy ±1LSB INL, ±1LSB DNL, no missing codes over temperature range

.

70dB SINAD at 250KHz input frequency

.

1.5V to 3.6V wide range I/O supply

.

16MHz, 3wire SPI/QSPI/MICROWIRE/DSP compatible serial interface

.

Wide operating temperature range from -40°C to +125°C
