MAX1032BEUG+

MAXIM INTEGRATED PRODUCTS  MAX1032BEUG+  模数转换器, 低功率, 14 bit, 115 kSPS, 单, 4.75 V, 5.25 V, TSSOP

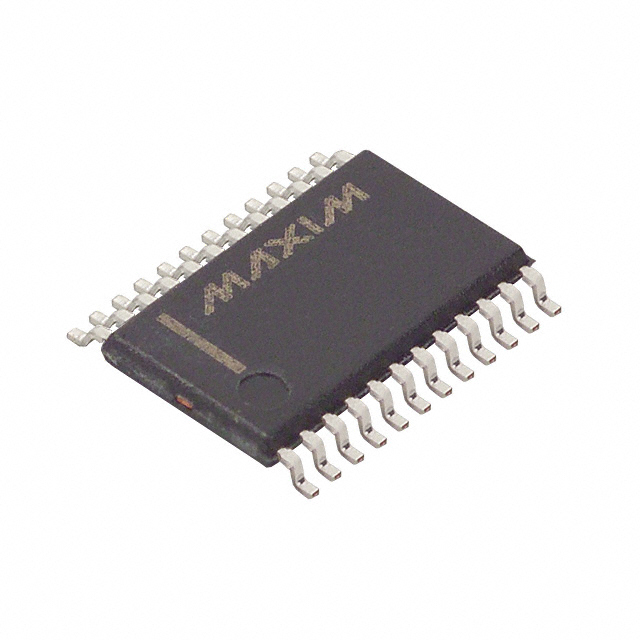

The is an 8-channel, ±3 x VREF multirange inputs, serial 14bit analogue to digital converter ADC in 24 pin TSSOP package. This 14bit successive-approximation ADC operate from a single +5V supply and has a separate digital supply allowing digital interface with 2.7V to 5.25V systems. It has an internal track and hold T/H circuitry that supports single-ended and fully differential inputs. For single ended conversions the valid analogue input voltage range spans from -3 x VREF below ground to +3 x VREF above ground. It provides eight single-ended or four true differential analogue input channels. An on-chip +4.096V reference offers a small convenient ADC solution. It also accepts an external reference voltage between 3.800V and 4.136V. It is used in data-acquisition systems, avionics and robotics.

.

Supply voltage range is 4.75V to 5.25V

.

Operating temperature range from -40°C to 85°C

.

Software programmable input range for each channel

.

±16.5V overvoltage tolerant inputs

.

Internal or external reference

.

Maximum sample rate is 115Ksps
