MAXIM INTEGRATED PRODUCTS MX7705EUE+ 模数转换器, 低功率, 16 bit, 500 SPS, 单, 2.7 V, 5.25 V, TSSOP
The is a 16bit, low power, 2-channel, sigma-delta analogue to digital converter ADC in 16 pin TSSOP package. This serial output ADC includes sigma-delta modulator with digital filter to achieve 16bit resolution with no missing codes. The operating supply current is 320µA with 3V supply and power down mode reduces supply current to 2µA. Self calibration and system calibration allow the MX7705 to correct for gain and offset errors. Excellent DC performance ±0.003% FSR INL and low noise 650nV make the MX7705 ideal for measuring low frequency signals with wide dynamic range. The device accepts fully differential bipolar/unipolar inputs. An internal input buffer allows for input signals with high source impedances. An on-chip digital filter with programmable cut-off and output data rate processes the output of sigma-delta modulator. It is used in strain gauge measurements, loop powered systems, flow and gas meters, pressure transducers, thermocouple and RTD measurements.
电源电压DC 2.70V min
电路数 1
通道数 2
针脚数 16
位数 16
耗散功率 755 mW
采样率 500 SPS
模数转换数ADC 1
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 755 mW
电源电压Max 5.25 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 16

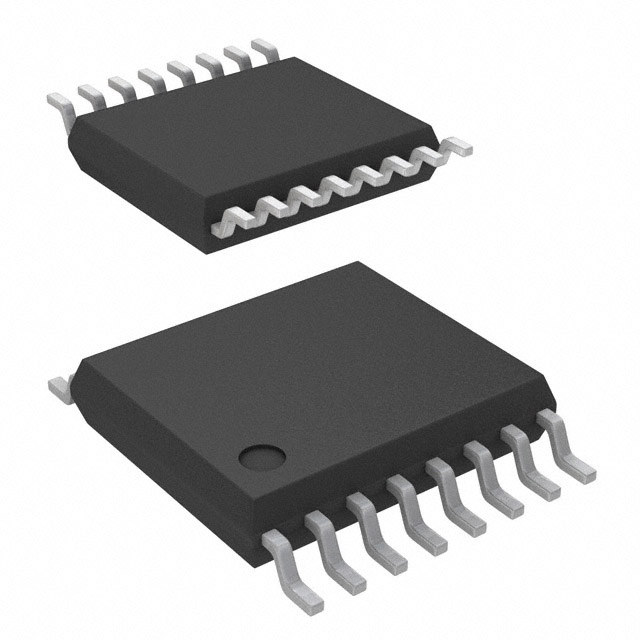

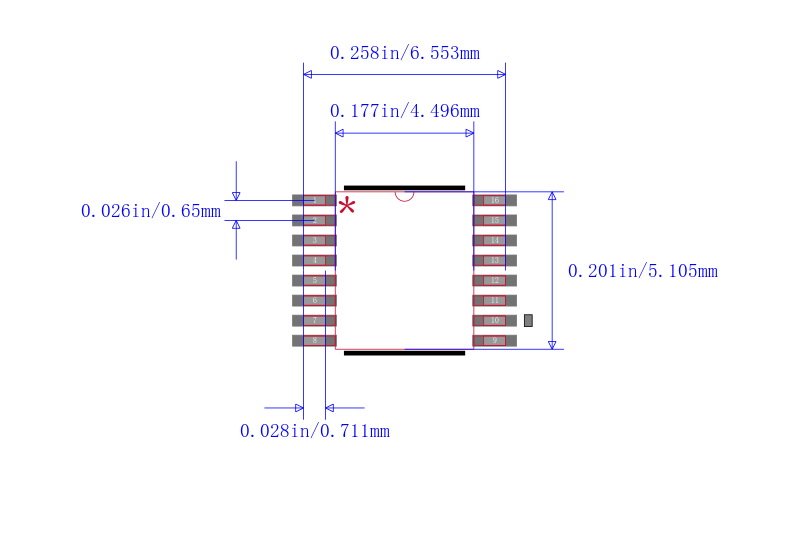

封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 消费电子产品, 工业, Consumer Electronics, 信号处理, Signal Processing, 医用, Industrial, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MX7705EUE+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MX7705EPE+ 美信 | 完全替代 | MX7705EUE+和MX7705EPE+的区别 |
MX7705EUE+T 美信 | 完全替代 | MX7705EUE+和MX7705EUE+T的区别 |
MAX1415EUE+ 美信 | 类似代替 | MX7705EUE+和MAX1415EUE+的区别 |
