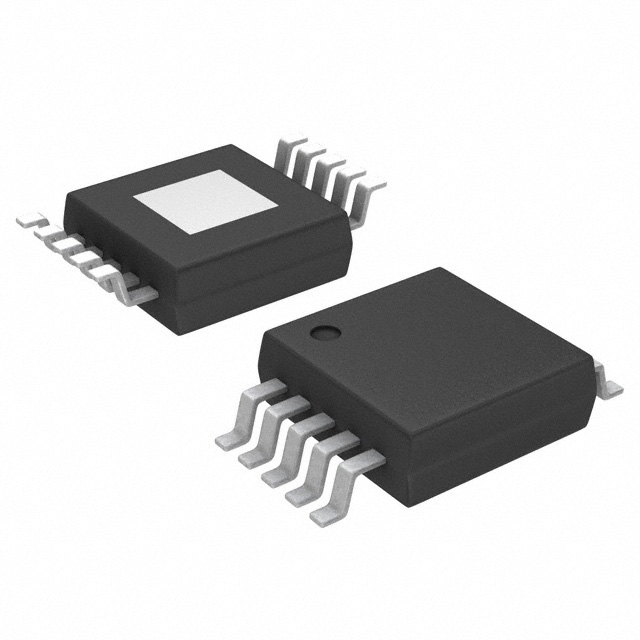

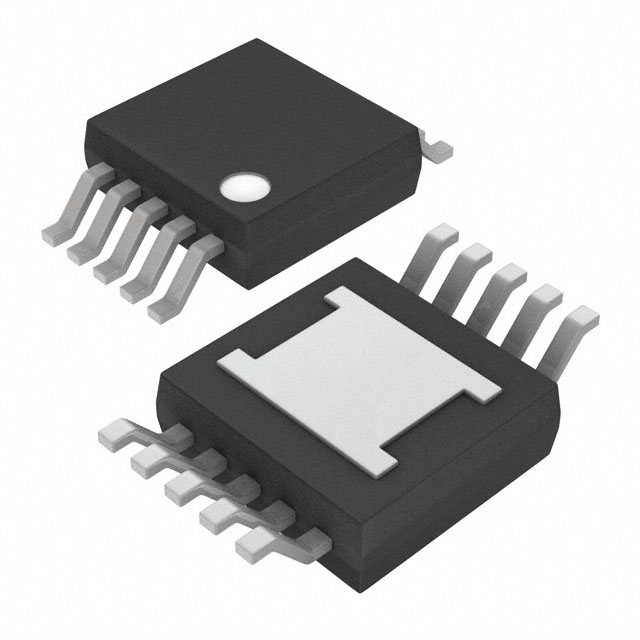

MAXIM INTEGRATED PRODUCTS MAX11666AUB+T 模数转换器, 低功率, 12 bit, 500 kSPS, 单, 2.2 V, 3.6 V, µMAX
The is a 500Ksps, low power, serial 12bit analogue to digital converter in 10 pin µMAX package. This high performance ADC includes a high-dynamic range sample and hold and a high speed serial interface. It accepts a full-scale input from 0V to the power supply or to the reference voltage. The MAX11666 feature dual, single ended analogue inputs connected to the ADC core using a 2:1 MUX. It also includes a separate supply input for data interface and a dedicated input for reference voltage. In contrast, the single channel devices generate the reference voltage internally from the power supply. The device includes full power-down mode and fast wake-up for optimal power management and a high speed 3-wire serial interface. The 3-wire serial interface connects to SPI, QSPI and MICROWIRE devices without external logic. It is ideal for portable battery-powered data-acquisition applications and for other applications that demand low power consumption and minimal space.
电源电压DC 2.20V min
针脚数 10
位数 12
采样率 500 ksps
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 2.2 V
安装方式 Surface Mount
引脚数 10
封装 TFSOP-10
封装 TFSOP-10
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 信号处理, 车用, Signal Processing, 通信与网络, Automotive, 便携式器材, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX11666AUB+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX11666AUB+ 美信 | 完全替代 | MAX11666AUB+T和MAX11666AUB+的区别 |
MAX11103AUB+ 美信 | 类似代替 | MAX11666AUB+T和MAX11103AUB+的区别 |
MAX11102AUB+ 美信 | 类似代替 | MAX11666AUB+T和MAX11102AUB+的区别 |
