MAX11101EUB+

MAXIM INTEGRATED PRODUCTS  MAX11101EUB+  模数转换器, 10uA关断, 14 bit, 200 kSPS, 单, 4.75 V, 5.25 V, µMAX

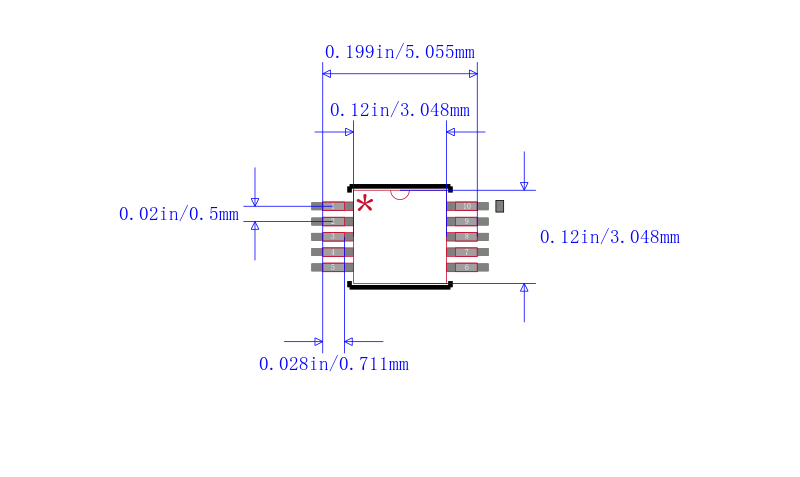

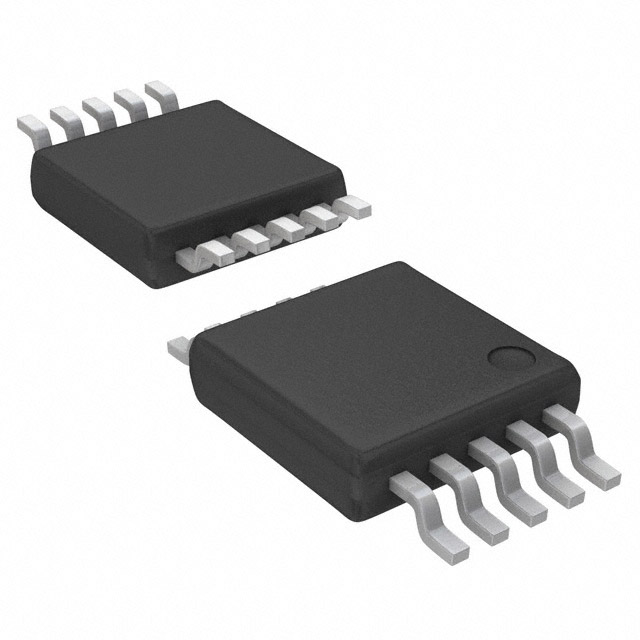

The is a 14bit, +5V, 200Ksps analogue to digital converter ADC with 10µA shutdown in 10 pin µMAX package. The device includes an input track and hold T/H and successive approximation register SAR circuitry to convert an analogue input signal to a digital 14bit output. The excellent dynamic performance and low power, combined with ease of use and small package size makes device ideal for battery powered and data-acquisition applications or for other circuits with demanding power consumption and space requirements. It is also used in thermocouple measurements and accelerometer measurements.

.

Supply voltage range is 4.75V to 5.25V

.

Operating temperature range from -40°C to 85°C

.

Adjustable logic level 2.7V to 5.25V

.

Input voltage range from 0 to VREF

.

Internal track and hold, 4MHz input bandwidth

.

Normal and shutdown 2 power modes

.

SPI/QSPI/MICROWIRE compatible serial interface

.

Low power supply current of 2.45mA at 200Ksps and 140µA at 10Ksps

.

Low power supply current of 0.1µA in power down mode
