MAX19506ETM+

双通道， 8位， 100MSPS ADC Dual-Channel, 8-Bit, 100Msps ADC

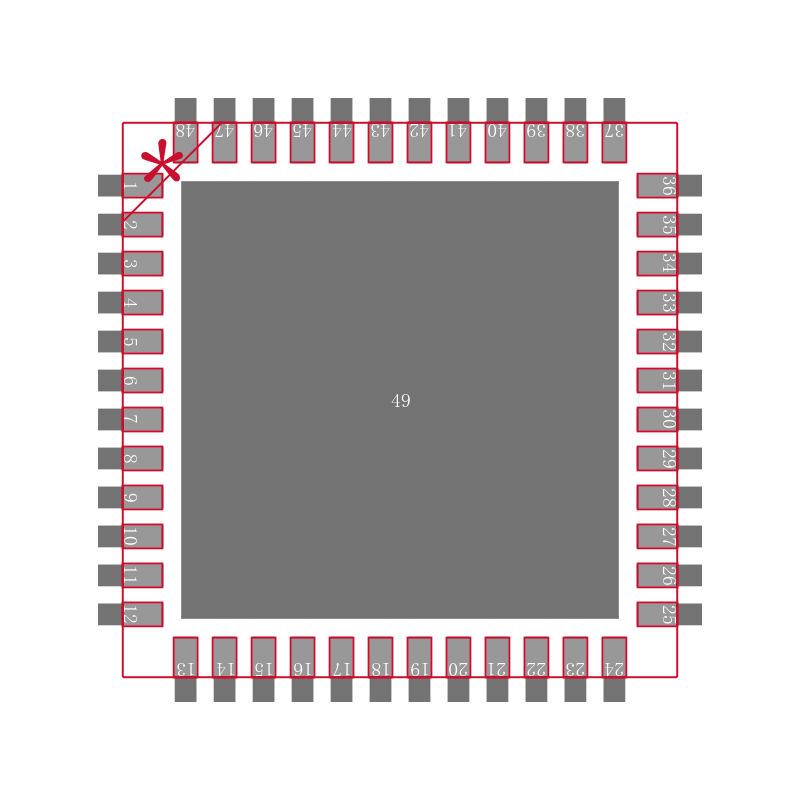

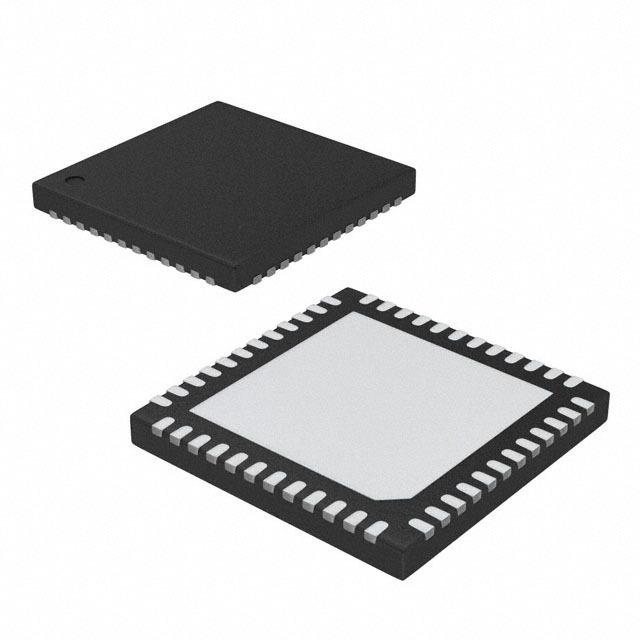

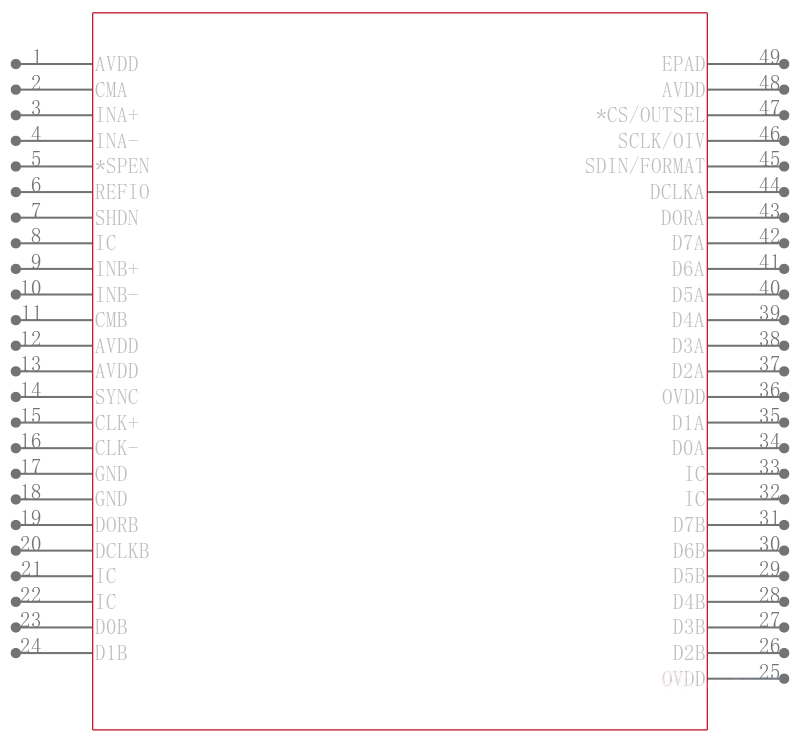

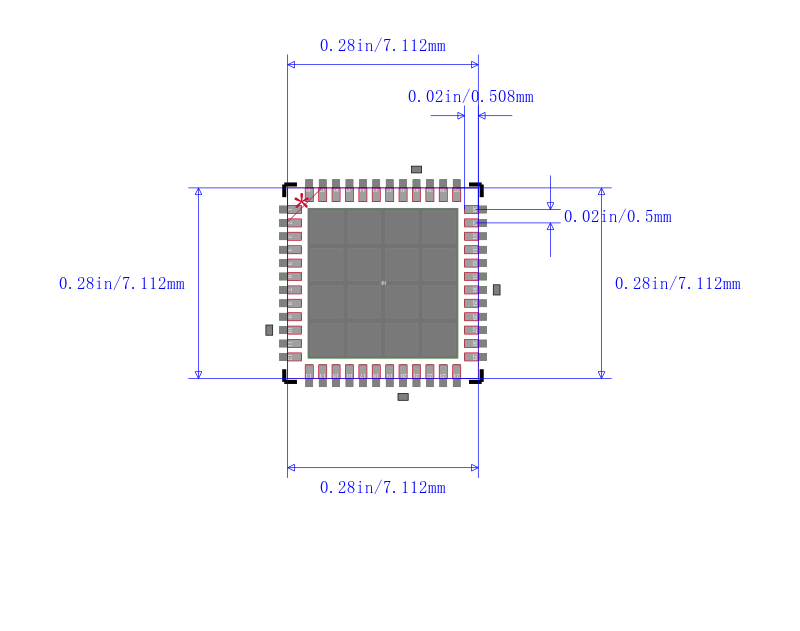

The from Products is a dual-channel, 8bit, 100Msps ADC in 48 pin TQFN package. The analogue input accepts a wide 0.4V to 1.4V input common-mode voltage range, allowing DC coupled inputs for a wide range of RF, IF and baseband front-end components. The MAX19506 provides excellent dynamic performance from baseband to high input frequencies beyond 400MHz, making the device ideal for ZIF and high IF sampling applications. The digital output drivers operate on an independent supply voltage over 1.8V to 3.5V range. Various adjustments and feature selections are available through programmable registers that are accessed through the 3-wire serial-port interface. Alternatively, serial-port interface can be disabled with 3 pins available to select output mode, data format and clock-divider mode. Data outputs are available through a dual parallel CMOS-compatible output data bus that can also be configured as a single multiplexed parallel CMOS bus.

.

Excellent dynamic performance of 49.8dBFS SNR at 70MHz, 69dBc SFDR at 70MHz

.

Very low power operation 57mW/channel at 100Msps

.

1.8V or 2.5V to 3.3V analogue supply, operating temperature range from -40°C to +85°C

.

Consumes only 1mW in powerdown mode and 17mW in standby mode

.

Very high analogue input bandwidth > 850MHz

.

Single ended or differential analogue inputs, Single ended or differential clock input

.

Divide by one DIV1, divide by two DIV2 and divide by four DIV4 clock modes

.

Two"s complement, grey code and offset binary output data format

.

Out-of-range indicator, CMOS output internal termination options programmable

.

Data output test patterns
