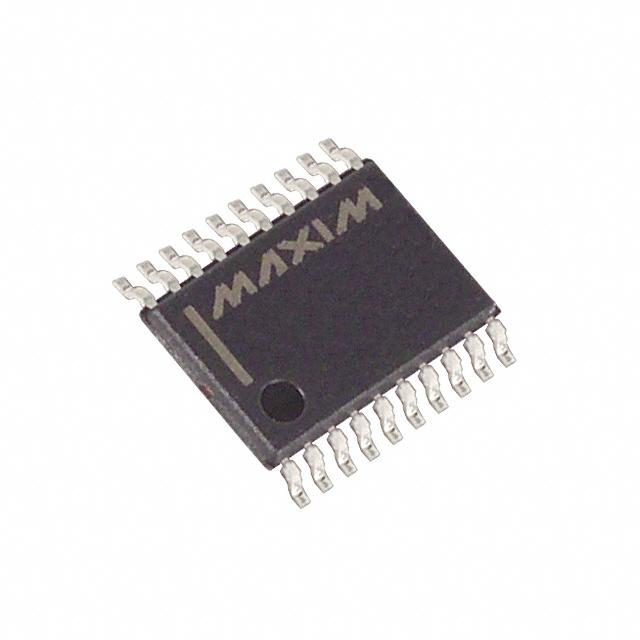

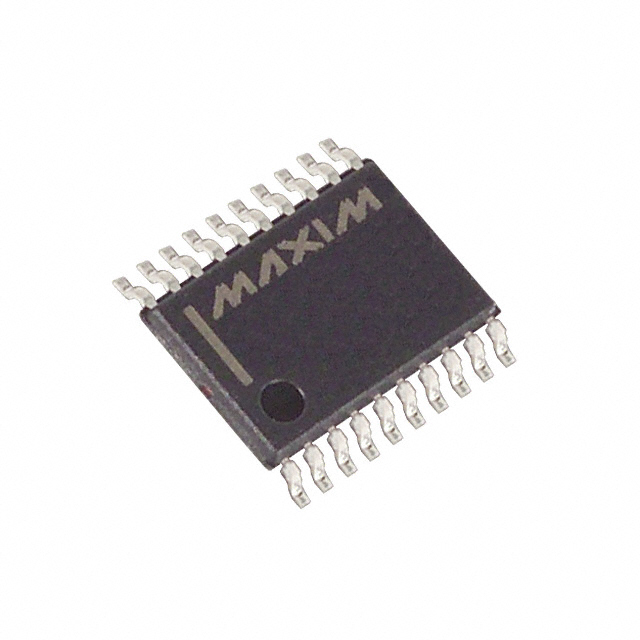

MAX1301BEUP+

MAXIM INTEGRATED PRODUCTS  MAX1301BEUP+  模数转换器, 低功率, 16 bit, 115 kSPS, 单, 2.7 V, 5.25 V, TSSOP

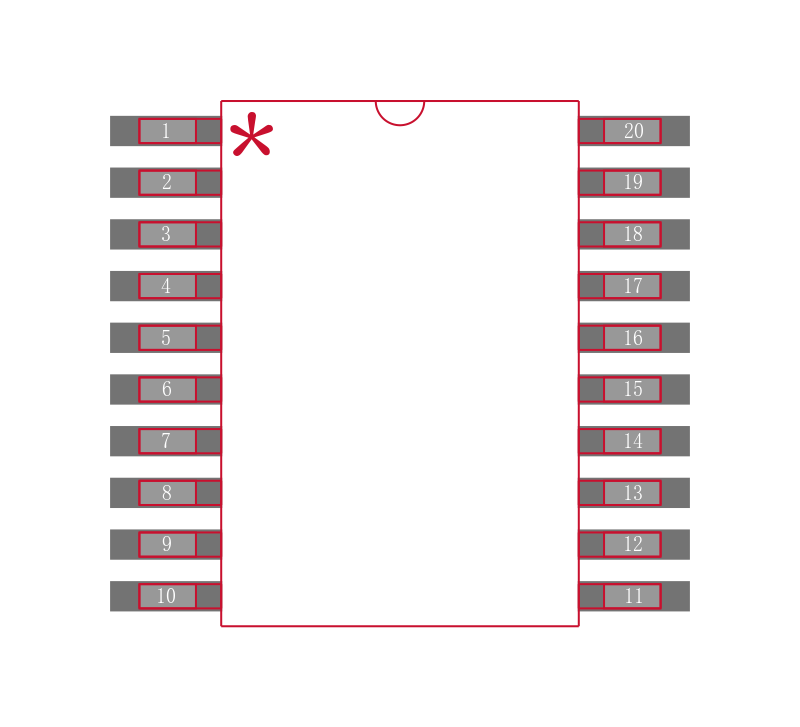

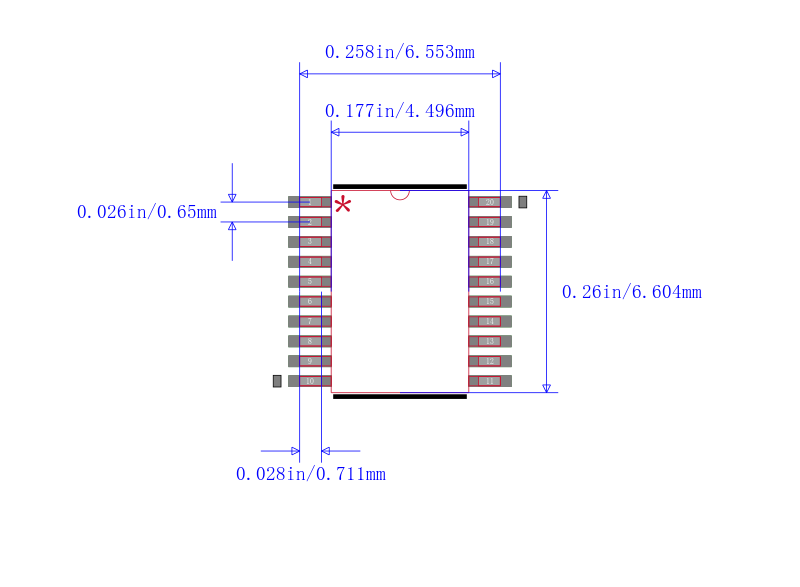

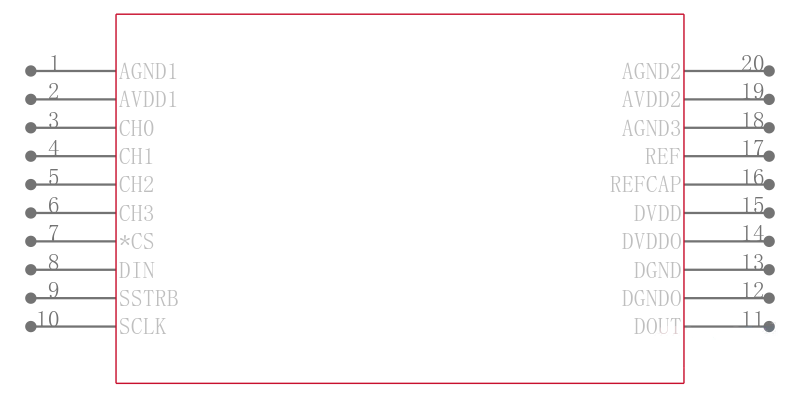

The is a 4 channel, ±3 x VREF multirange inputs, serial 16bit ADC in 20 pin TSSOP package. The successive approximation ADC operates from a single +5V supply and achieve throughput rates up to 115Ksps. A separate digital supply allows digital interfacing with 2.7V to 5.25V systems using the SPI/QSPI/MICROWIRE compatible serial interface. Partial power-down mode reduces the supply current to 1.3mA. Full power-down mode reduces the power supply current to 1µA. It has four single ended analogue input channels or two differential channels. Each analogue input channel is independently software programmable for seven single ended input ranges [0 to +3 x VREF/2, -3 x VREF/2 to 0, 0 to +3 x VREF, -3 x VREF to 0, ±3 x VREF/4, ±3 x VREF/2, ±3 x VREF] & three differential input ranges [±3 x VREF/2, ±3 x VREF, ±6 x VREF]. All analogue input channels are fault tolerant to ±16.5V. A fault condition on an idle channel does not affect the conversion result of other channels.

.

Software programmable input range for each channel

.

Operating temperature range from -40°C to 85°C

.

±16.5V overvoltage tolerant inputs

.

Internal or external reference

.

Integral nonlinearity is ±1LSB and differential nonlinearity is 2LSB max

.

Internal track and hold T/H circuitry
