MAX105ECS+

MAXIM INTEGRATED PRODUCTS  MAX105ECS+  模数转换器, 6 bit, 800 MSPS, 单, 4.75 V, 5.25 V, TQFP

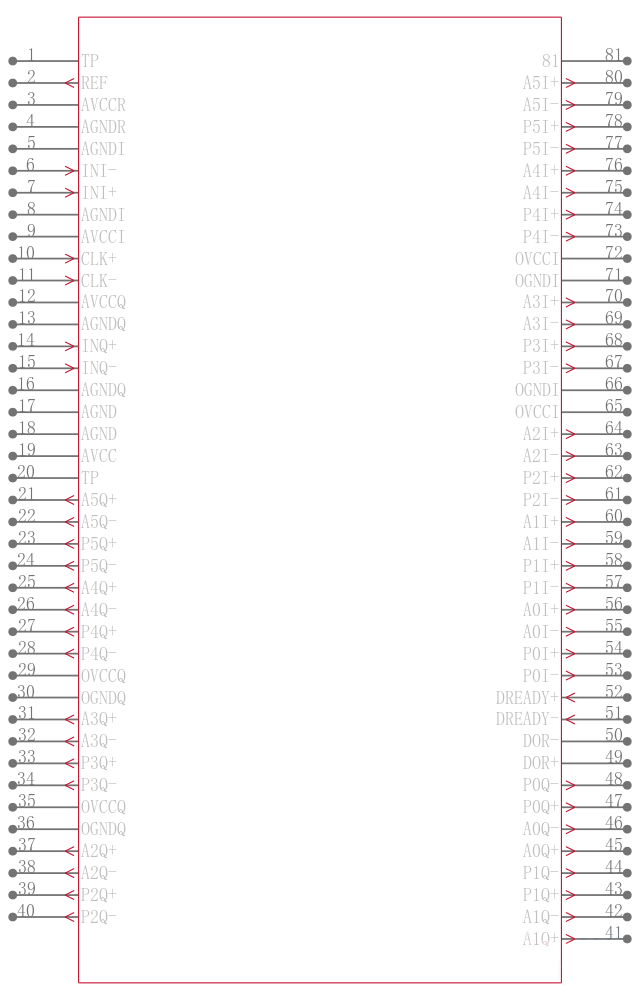

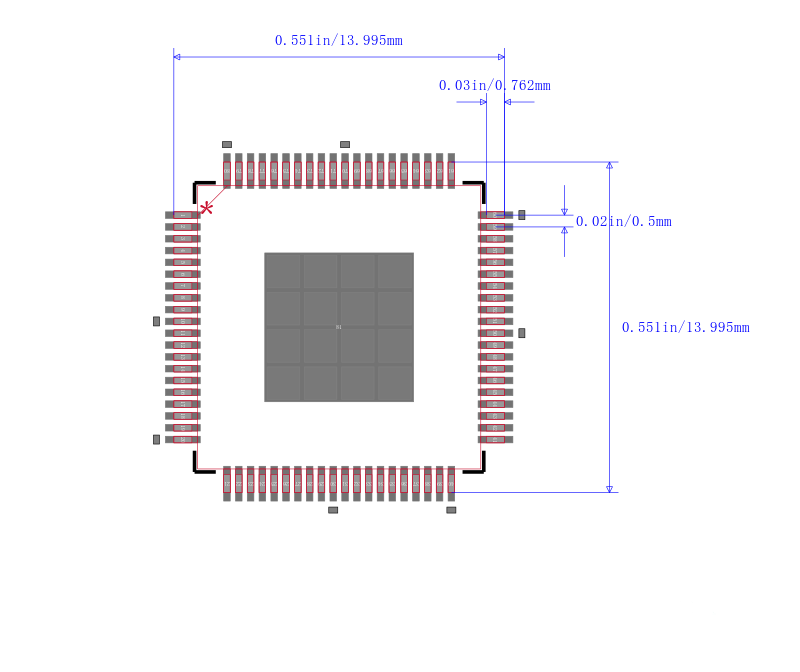

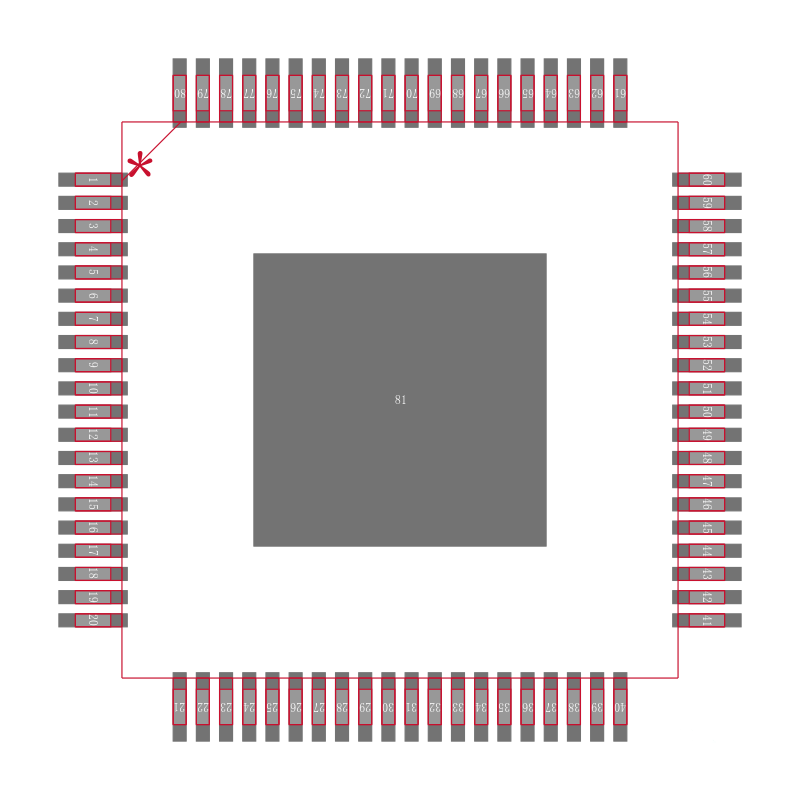

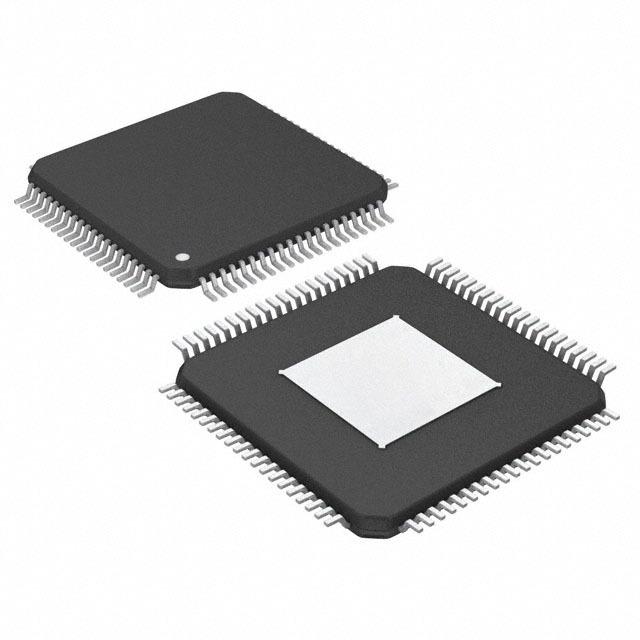

The is a dual, 6bit 800Msps analogue to digital converter ADC with on-chip, wideband input amplifier in 80 pin TQFP package. This ADC is designed to allow high speed, high bandwidth and precise digitizing of in-phase I and quadrature Q baseband signals. It converts analogue signals of both I and Q components to digital outputs at 800Msps while achieving a signal to noise ratio SNR of typically 37dB with an input frequency of 200MHz and an integral nonlinearity INL of ±0.2LSB and differential nonlinearity DNL of ±0.25LSB. A fully differential comparator design and encoding circuits reduce out of sequence errors and ensure excellent metastable performance of only one error per 10^16 clock cycles. It provides LVDS digital outputs with an internal 6:12 demultiplexer that reduces the output data rate to one-half the sample clock rate and output data is in two"s complement format. It is used in VSAT receivers, WLANs and test instrumentation.

.

Analogue supply voltage range is 4.75V to 5.25V, digital supply voltage range from 3V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

Excellent dynamic performance 36.4dB SINAD at fIN = 200MHz and fCLK = 800MHz

.

Channel to channel phase matching is ±0.2°

.

Channel to channel gain matching is ±0.04dB

.

Flash or parallel architecture

.

On-board +2.5V precision band gap reference

.

Offset voltage of ±0.25LSB

.

±0.1LSB offset matching between ADC"s

.

Crosstalk between ADCs is -70dB
