模数转换器 - ADC Low-Power 8-Ch 10-Bit w/Int Ref
Bit Analog to Digital Converter Input
得捷:

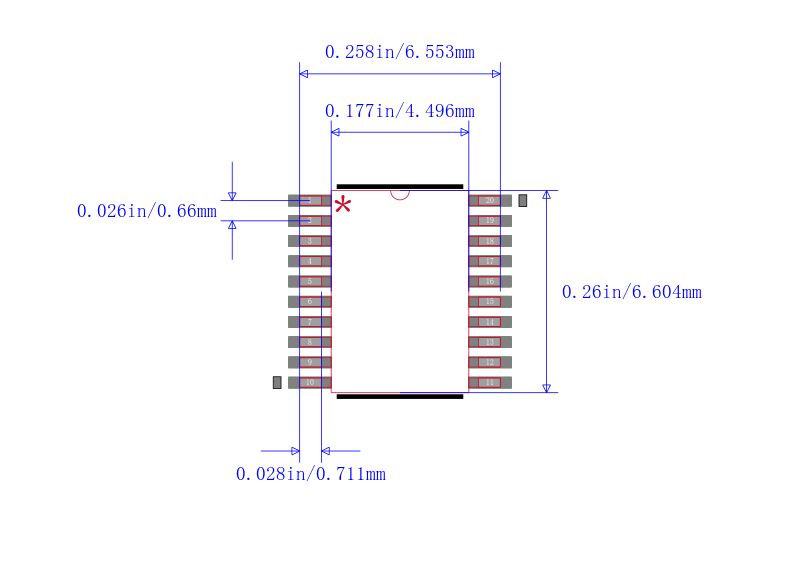

IC ADC 10BIT 400KSPS 20-TSSOP
贸泽:
模数转换器 - ADC Low-Power 8-Ch 10-Bit w/Int Ref
安富利:
The MAX1080 10-bit analog-to-digital converters ADCs combine an 8-channel analog-input multiplexer, high-bandwidth track/hold T/H, and serial interface with high conversion speed and low power consumption. The MAX1080 operates from a single +4.5V to +5.5V supply; devices’ analog inputs are software configurable for unipolar/bipolar and single-ended/pseudo-differential operation.The 4-wire serial interface connects directly to SPI™/QSPI™ and MICROWIRE™ devices without external logic. A serial strobe output allows direct connection to TMS320-family digital signal processors. The MAX1080 use an external serial-interface clock to perform successive-approximation analog-to-digital conversions. The devices feature an internal +2.5V reference and a reference-buffer amplifier with a ±1.5% voltage-adjustment range. An external reference with a 1V to VDD1 range may also be used.The MAX1080 provide a hard-wired SHDN pin and four software-selectable power modes normal operation, reduced power REDP, fast power-down FASTPD, and full power-down FULLPD. These devices can be programmed to automatically shut down at the end of a conversion or to operate with reduced power. When using the power-down modes, accessing the serial interface automatically powers up the devices, and the quick turnon time allows them to be shut down between all conversions. This technique can cut supply current below 100mA at lower sampling rates.The MAX1080 is available in a 20-pin TSSOP package. These devices are higher-speed versions of the MAX148/MAX149.
Chip1Stop:
Single ADC SAR 400ksps 10-bit Serial 20-Pin TSSOP
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX1080AEUP+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX1080AEUP 美信 | 完全替代 | MAX1080AEUP+和MAX1080AEUP的区别 |
MAX1080AEUP+T 美信 | 完全替代 | MAX1080AEUP+和MAX1080AEUP+T的区别 |
MAX1080ACUP+ 美信 | 类似代替 | MAX1080AEUP+和MAX1080ACUP+的区别 |
