MAX146BCAP

\+ 2.7Low功耗， 8通道，串行12位ADC +2.7Low-Power, 8-Channel, Serial 12-Bit ADCs

General Description

The MAX146/MAX147 12-bit data-acquisition systems combine an 8-channel multiplexer, high-bandwidth track/hold, and serial interface with high conversion speed and low power consumption. The MAX146 operates from a single +2.7V to +3.6V supply; the MAX147 operates from a single +2.7V to +5.25V supply. Both devices’ analog inputs are software configurable for unipolar/bipolar and single-ended/differential operation.

Features

♦8-Channel Single-Ended or 4-Channel Differential Inputs

♦Single-Supply Operation:

  +2.7V to +3.6V MAX146

  +2.7V to +5.25V MAX147

♦Internal 2.5V Reference MAX146

♦Low Power: 1.2mA 133ksps, 3V supply

  54µA 1ksps, 3V supply

  1µA power-down mode

♦SPI/QSPI/Microwire/TMS320-Compatible 4-Wire Serial Interface

♦Software-Configurable Unipolar or Bipolar Inputs

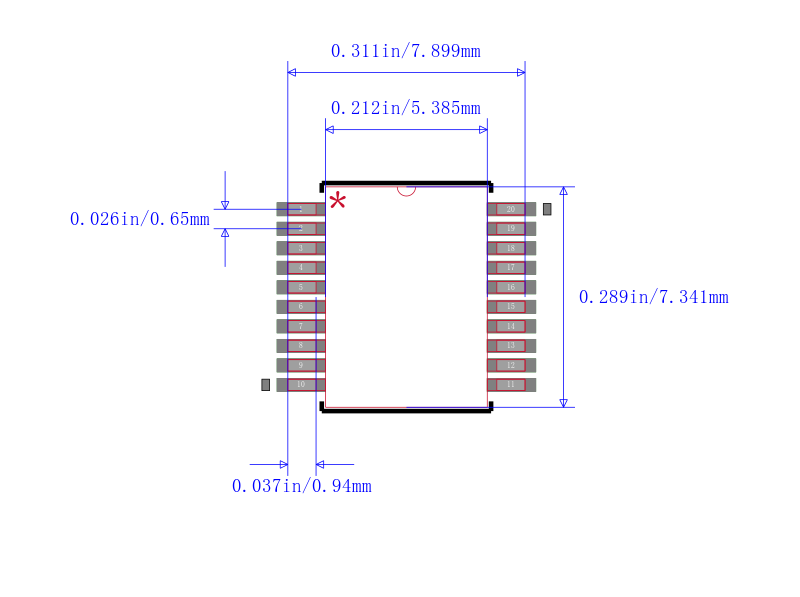

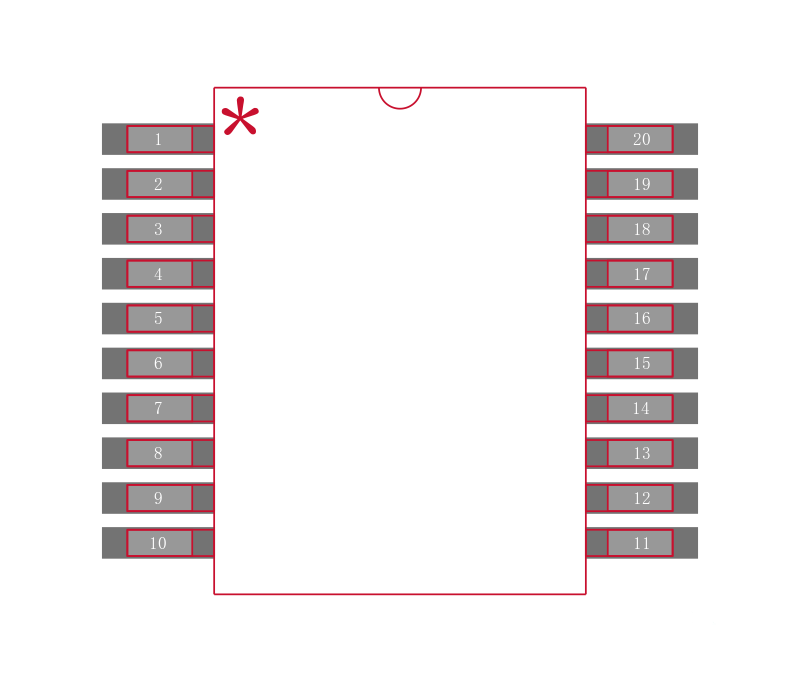

♦20-Pin DIP/SSOP Packages

Applications

Portable Data Logging

Data Acquisition

Medical Instruments

Battery-Powered Instruments

Pen Digitizers

Process Control
