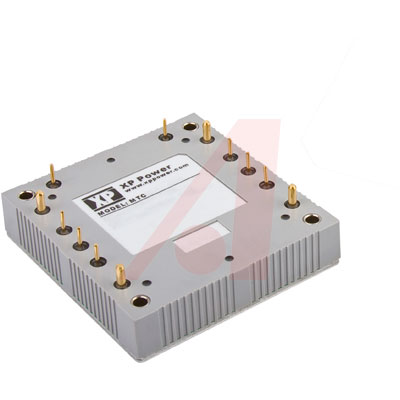

XP POWER MTC7528D12 Isolated Board Mount DC-DC Converter, Vetronic & Avionic, Fixed, Adjustable, 2 Output, 10V, 40V
MTC Series, 5-30 Watts. 10 50 VDC Input Range. Designed for Vetronic & Avionic Use. Single & Dual Output Versions. -55 °C Operation Available. MIL STD 461 and DEF STAN 59 411. MIL STD 1275 and DEF STAN 61 5. 3 Year Warranty.
得捷:
DC DC CONVERTER +/-12V 75W
Allied Electronics:
Power Supply; 75W mil-spec DC-DC converter dual output
Newark:
# XP POWER MTC7528D12 Isolated Board Mount DC/DC Converter, Vetronic & Avionic, Fixed, Adjustable, 2 Output, 10 V, 40 V
额定功率 75 W
输出接口数 2
输出电压 12 VDC
输出功率 75 W
隔离电压 1.5 kV
输入电压Max 40 V
输入电压Min 10 V
输入电压DC Max 40 V
输入电压DC Min 10 v
输出电流Max 3.13A, 3.13A
输出功率Max 75 W
输入电压 10VDC ~ 40VDC
安装方式 Through Hole
封装 DIP-12
封装 DIP-12
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Box
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
