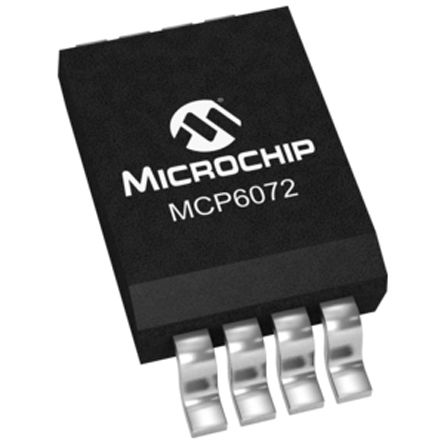

MICROCHIP MCP6072-E/SN 运算放大器, 双路, AEC-Q100, 1.2 MHz, 2个放大器, 0.5 V/µs, 1.8V 至 6V, SOIC, 8 引脚
MCP6071/6072/6074
The MCP6072 operational amplifier op amps has a low input offset voltage ±150 μV, maximum and rail-to-rail input and output operation. The MCP6072 is unity gain stable and has a gain bandwidth product of 1.2 MHz typical. This device operates with a single supply voltage as low as 1.8V, while drawing low quiescent current per amplifier 110 μA, typical. These features make the MCP6072 well suited for single-supply, high precision, battery-powered applications. The MCP6072 is available is SOIC and 2x3 TDFN packages.
Gain Bandwidth Product of 1.2 MHz typical
Low input offset voltage ±150 μV, maximum
Rail-to-Rail Input and Output
Unity gain stable
Low quiescent current
Low input offset voltage
### 运算放大器，
电源电压DC 1.80V min
工作电压 1.8V ~ 6V
输出电流 28 mA
供电电流 110 µA
电路数 2
通道数 2
针脚数 8
共模抑制比 91 dB
静态电流 170 µA
输入补偿漂移 1.50 µV/K
带宽 1.2 MHz
转换速率 500 mV/μs
增益频宽积 1.2 MHz
输入补偿电压 150 µV
输入偏置电流 1 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 1.2 MHz
共模抑制比Min 72 dB
电源电压 1.8V ~ 6V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.9 mm
高度 1.25 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 车用, 测试与测量, 医用, Medical, Sensing & Instrumentation, 便携式器材, 电源管理, Power Management, 传感与仪器, Automotive, Portable Devices, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP6072-E/SN Microchip 微芯 | 当前型号 | 当前型号 |
MCP6032-E/SN 微芯 | 类似代替 | MCP6072-E/SN和MCP6032-E/SN的区别 |
MCP6052-E/SN 微芯 | 类似代替 | MCP6072-E/SN和MCP6052-E/SN的区别 |
MCP6031-E/SN 微芯 | 类似代替 | MCP6072-E/SN和MCP6031-E/SN的区别 |
