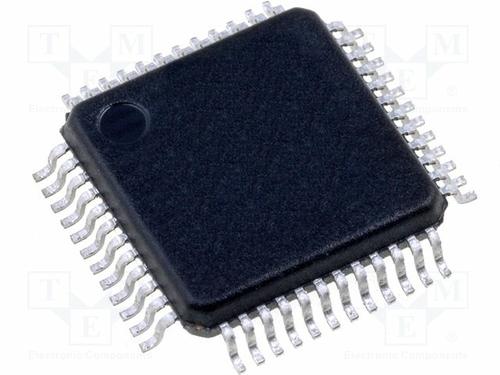

MC9S12C64CFAE

NXP  MC9S12C64CFAE  微控制器, 16位, HCS12/S12X, 25 MHz, 64 KB, 4 KB, 48 引脚, LQFP

The is a 16-bit flash-based Microcontroller Unit. The MC9S12C-family members feature standard on-chip peripherals including a 16-bit central processing unit CPU12, up to 128K bytes of flash EEPROM, up to 4K bytes of RAM, an asynchronous serial communications interface SCI, a serial peripheral interface SPI, an 8-channel 16-bit timer module TIM. The MC9S12C-family devices feature full 16-bit data paths throughout. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to suit operational requirements. In addition to the I/O ports available in each module, up to 10 dedicated I/O port bits are available with wake-up capability from stop or wait mode.

.

Up to 12-port bits available for wake up interrupt function with digital filtering

.

Analogue-to-digital converters - One 8-channel module with 10-bit resolution

.

One 1Mbps, CAN 2.0 A, B software compatible module

.

Five receive and three transmit buffers

.

Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit

.

Four separate interrupt channels for Rx, Tx, error and wake-up

.

Low-pass filter wake-up function

.

Loop-back for self test operation

.

Development support - Single-wire background debug™ mode BDM, on-chip hardware breakpoints

ESD sensitive device, take proper precaution while handling the device.
