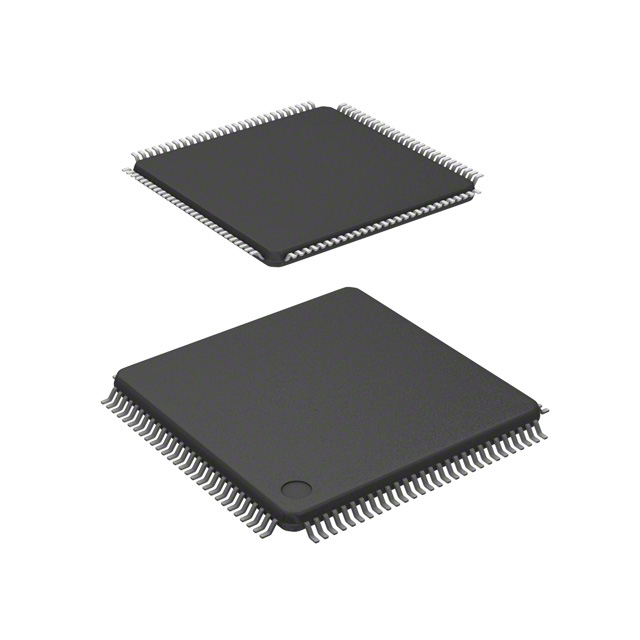

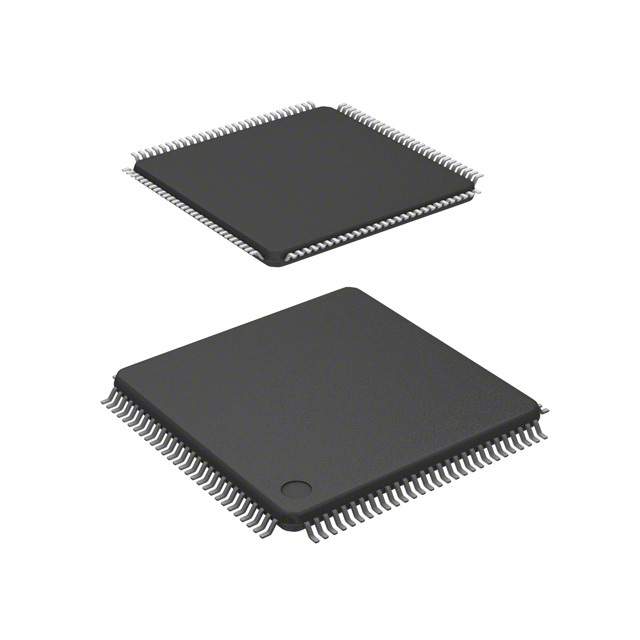

MC812A4CPVE8

NXP  MC812A4CPVE8  微控制器, 16位, 低功率 高速, HC12, 8 MHz, 4 KB, 1 KB, 112 引脚, LQFP

The is a Microcontroller, 16-bit device composed of standard on-chip peripheral modules connected by an InterModule Bus. Modules include a 16-bit central processing unit CPU12, a Lite integration module LIM, two asynchronous serial communications interfaces SCI0 and SCI1, a serial peripheral interface SPI, a timer and pulse accumulation module, an 8-bit analog-to-digital converter ATD, 1kb RAM and memory expansion logic with chip selects, key wakeup ports and a phase-locked loop PLL.

.

Low-power, high-speed M68HC12 CPU

.

Power saving STOP and WAIT modes

.

Single-wire background debug mode

.

Non-multiplexed address and data buses

.

Seven programmable chip selects with clock stretching expanded modes

.

16-bit pulse accumulator

.

Real-time interrupt circuit
