M30-1100400

HARWIN  M30-1100400  线至板连接器, M30-1系列, 4 触点, 插座, 1.25 mm, 压接, 1 排

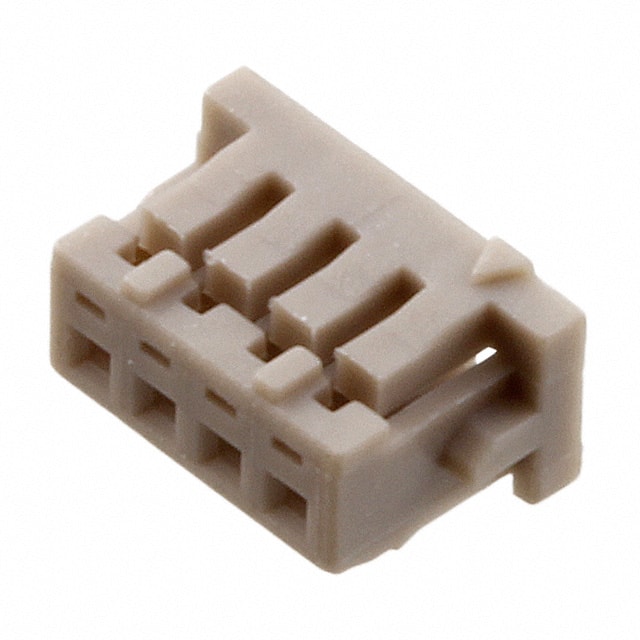

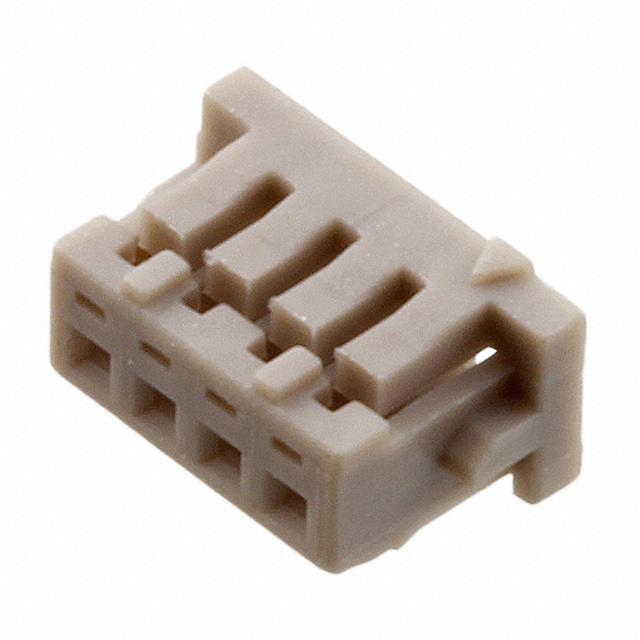

The is a 4-contact 1.25mm female SIL Crimp Socket with natural UL94V-0 polyamide nylon 66 housing. The M22 series receptacle has bump latches for added retention, straight connector orientation and cable housing connection type. It is suitable for use with 0.35mm square mating pin size. Use with crimp contacts M30-1050046, M30-1060046 or pre-crimped contacts M30-90 series.

.

1A AC/DC Current rating

.

150VAC/DC Voltage rating

.

30mR Maximum contact resistance

.

50MR Minimum insulation resistance

.

500VAC for one minute Dielectric withstanding voltage
