MC9S08QE32CLC

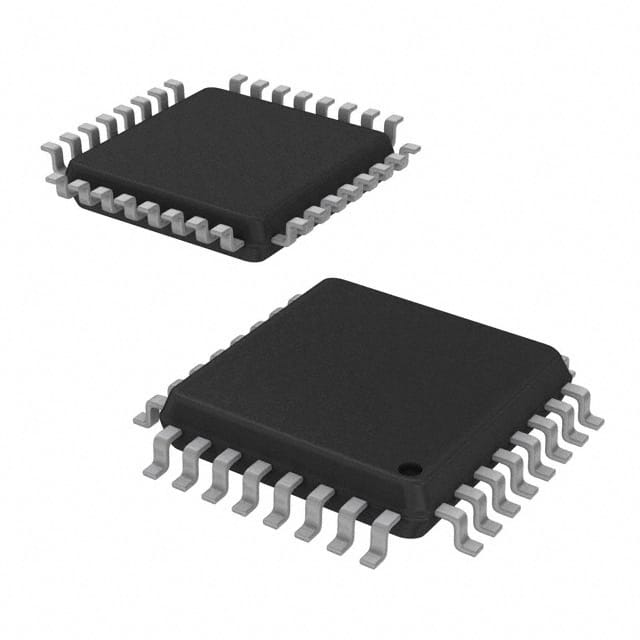

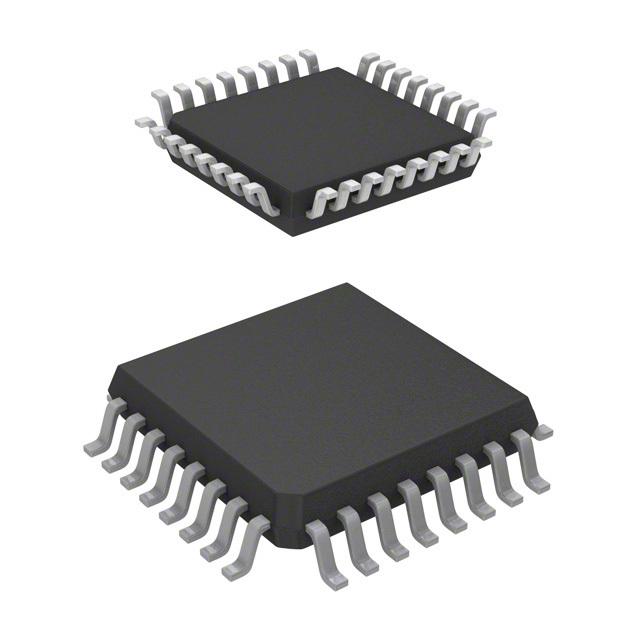

NXP  MC9S08QE32CLC  微控制器, 8位, QE系列, S08QE, 50.33 MHz, 32 KB, 2 KB, 32 引脚, LQFP

The is a 8-bit Microcontroller based on enhanced HCS08 CPU 25MHz bus with CISC architecture operates at a maximum frequency of 50MHz. The device incorporates 32kB internal flash, 2kB internal RAM, 10-channel 12-bit A/D converter and 26 general-purpose I/O pins. This device also features peripherals like one inter-integrated circuit IIC bus module to operate at up to 100kbps, one serial peripheral interface modules SPI, two serial communications interface SCI and an analog comparator. Internal clock source ICS containing a frequency-locked-loop FLL controlled by internal or external reference, precision trimming of internal reference allowing 0.2% resolution and 2% deviation. Watchdog computer operating properly COP reset with option to run from dedicated 1kHz internal clock source.

.

HC08 Instruction set with added BGND instruction

.

Support for up to 32 Interrupt/reset sources

.

Security circuitry to prevent unauthorized access to RAM and flash contents

.

Two low power stop modes; reduced power wait mode

.

Peripheral clock enable register can disable clocks to unused modules

.

Very low power external oscillator can be used in stop3 mode

.

Very low power real time interrupt for use in run, wait and stop modes

.

6µs Typical wake up time from stop modes

.

Loop-control pierce oscillator

.

Internal clock source ICS

.

Low-voltage detection with reset or interrupt; selectable trip points

.

Illegal opcode detection with reset

.

Illegal address detection with reset

.

Flash block protection

.

Single-wire background debug interface

.

Breakpoint capability to allow single breakpoint setting during in-circuit debugging

.

On-chip in-circuit emulator ICE debug module

.

RTC - 8-bit modulus counter with binary or decimal based prescaler

.

16 KBI Interrupts with selectable polarity

.

Hysteresis and configurable pull-up device on all input pins
