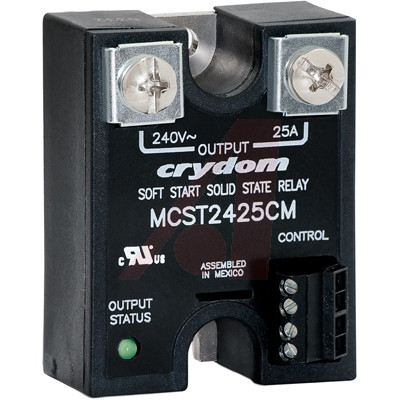

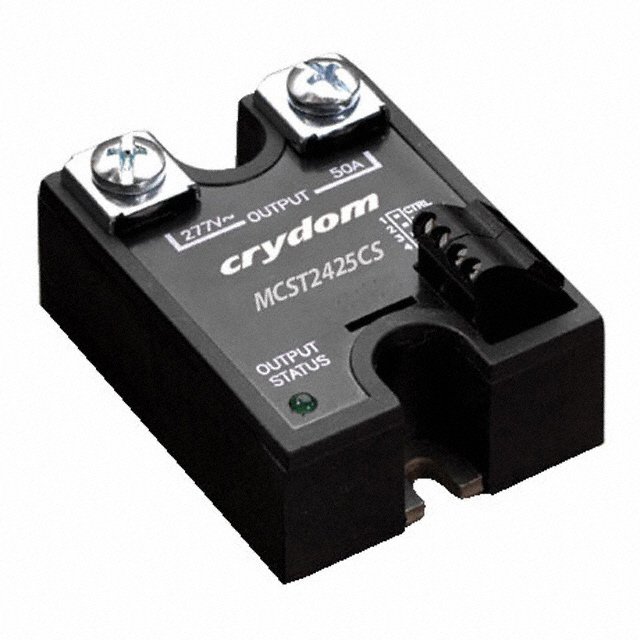

Relay SSR 30mA 32V DC-IN 25A 280V AC-OUT 6Pin
MCS Series, Solid State Relay, 1.8 in. Length, 2.3 in. Height, 20 lbs.-in. Torque
* Soft-start/stop controller and SSR in one package
* Microcontroller based technology
* Adjustable ramp rates
* Low voltage, 4-20 mA, or potentiometer control
* LED status indicator
* SCR based output load switching
* Built-in internal snubber
** MCS Series**
* Soft-Start/Stop Controller and SSR in One Package
* Microcontroller Based Technology
* Adjustable Ramp Rates
* Low Voltage, 4-20 mA, or Potentiometer Control
* LED Status Indicator
* SCR Based Output Load Switching
* Built-In Internal Snubber
** MCTC Series**
* Temperature Controller/SSR in One Package
* Direct J or K Internally Compensated Thermocoouple Input
* Four Heating Ranges Available with Burst Fire Control
* Setpoint is Adjustable by Voltage or 4-20 mA Control
* Separate Output Enable/Disable Control
* SCR Based Output Load Switching
* Open Thermocouple Protection Feature
* One Refrigeration Range Available with Built-In 2 Minute Short-Cycle Protection
