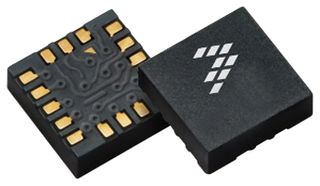

NXP MMA9553LR1 加速度计, MEMS, 动作感应, 数字, X, Y, Z, ± 2g, ± 4g, ± 8g, 1.71 V, 1.89 V, LGA
The is an Intelligent Sensor, incorporating dedicated accelerometer MEMS transducers, signal conditioning, data conversion and a 32-bit programmable microcontroller. This unique blend transforms device into an intelligent, high precision, motion-sensing platform able to manage multiple sensor inputs. This device can make system-level decisions required for sophisticated applications such as gesture recognition, pedometer functionality, tilt compensation and calibration and activity monitoring. The device is programmed and configured with the CodeWarrior Development Studio for Microcontrollers software, version 10.1 or later. This standard integrated design environment enables customers to quickly implement custom algorithms and features to exactly match their application needs. Using the master I²C port, the device can manage secondary sensors, such as pressure sensors, magnetometers or gyroscopes.
电源电压DC 1.71V min
无卤素状态 Halogen Free
针脚数 16
带宽 1.9Hz ~ 244Hz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.71V ~ 1.89V
电源电压Max 1.89 V
电源电压Min 1.71 V
安装方式 Surface Mount
引脚数 16
封装 VFLGA-16
封装 VFLGA-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 传感与仪器, 便携式器材, Portable Devices, Sensing & Instrumentation, 消费电子产品, Consumer Electronics
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMA9553LR1 NXP 恩智浦 | 当前型号 | 当前型号 |
FXLC95000CLR1 恩智浦 | 功能相似 | MMA9553LR1和FXLC95000CLR1的区别 |
