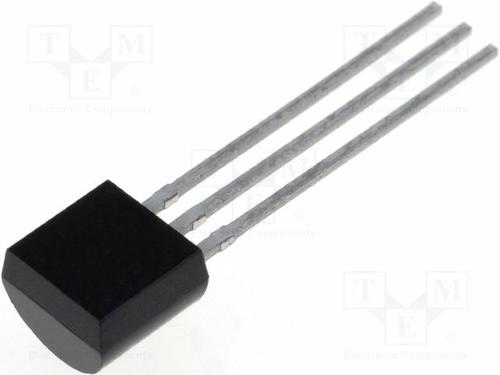

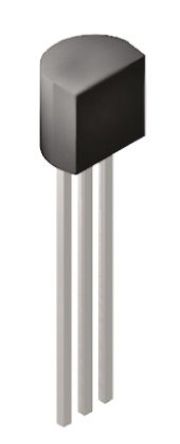

MICROCHIP MCP130-300DI/TO 监控器, 低电平有效复位, 1V-5.5V输入, TO-92-3
监控器 开路漏极或开路集电极 1 通道 TO-92-3
立创商城:
MCP130-300DI/TO
得捷:
IC SUPERVISOR 1 CHANNEL TO92-3
欧时:
Microchip MCP130-300DI/TO 电压监控器, 多种输出驱动, 3引脚 TO-92封装
e络盟:
MICROCHIP MCP130-300DI/TO 监控器, 低电平有效复位, 1V-5.5V输入, TO-92-3
艾睿:
In the event that a core processor fails in your circuit, the MCP130-300DI/TO processor from Microchip Technology supervisory ensures that there is a backup to take over. It has a typical reset threshold voltage of 2.925 V, with a minimum of 2.85 V and a maximum of 3 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V.
Allied Electronics:
Microchip MCP130-300DI/TO, Voltage Supervisor, 3-Pin TO-92
安富利:
Processor Supervisor 2.925V 3V/3.3V/5V 3-Pin TO-92 Bag
Chip1Stop:
Processor Supervisor 2.925V 3V/3.3V/5V 3-Pin TO-92 Bag
TME:
Supervisor Integrated Circuit; power on reset monitor PoR
Verical:
Processor Supervisor 2.925V 1 Active Low/Open Drain Automotive 3-Pin TO-92 Bag
DeviceMart:
IC SUPERVISOR 3.00V LOW TO92
电源电压DC 1.00V min
工作电压 1V ~ 5.5V
供电电流 45 μA
针脚数 3
静态电流 45.0 µA
阈值电压 2.925 V
复位电压Min 2.85 V
复位电压Max 3 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Through Hole
引脚数 3
封装 TO-92-3
长度 4.71 mm
宽度 3.62 mm
高度 4.62 mm
封装 TO-92-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bag
制造应用 Automotive, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP130-300DI/TO Microchip 微芯 | 当前型号 | 当前型号 |
MCP130-300FI/TO 微芯 | 完全替代 | MCP130-300DI/TO和MCP130-300FI/TO的区别 |
MCP130-300HI/TO 微芯 | 完全替代 | MCP130-300DI/TO和MCP130-300HI/TO的区别 |
MCP130T-300I/TT 微芯 | 类似代替 | MCP130-300DI/TO和MCP130T-300I/TT的区别 |
