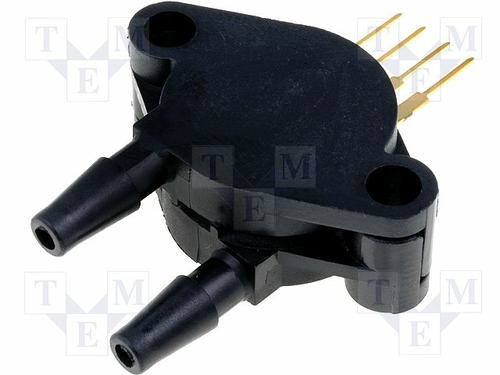

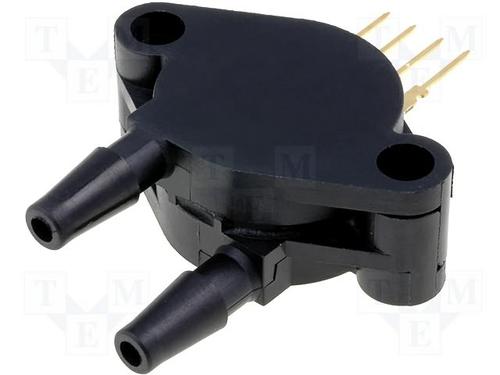

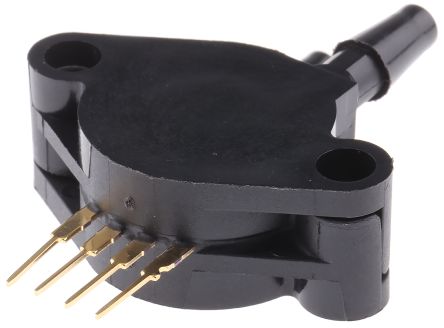

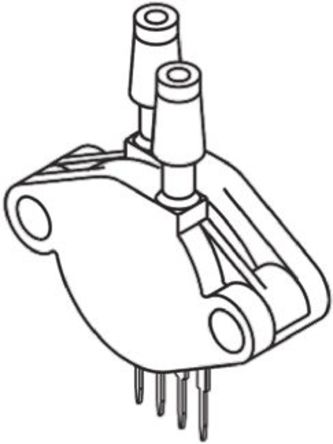

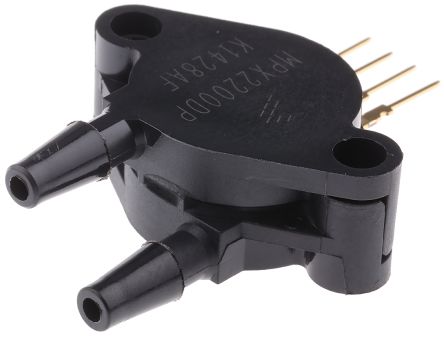

NXP MPX2200DP 压力传感器, 差分, 0.2 mV/kPa, 0 kPa, 200 kPa, 10 V, 16 V
差分/量规高达 1000 kPa,Freescale
高量程压力差分/量规传感器在压力施加到传感器侧(差分)和大气压力侧(校准的)时,测量来源之间的压力差异。
得捷:
SENSOR 29.01PSID 0.19" .04V
立创商城:
MPX2200DP
欧时:
NXP MPX2200DP 差压传感器, 200kPa, ±1 mV输出, 4引脚 箱 344C-01封装
艾睿:
Pressure Sensor 0kPa to 200kPa Differential 4-Pin Case 344C-01 Tray
安富利:
The MPX2200 series device is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span, offset calibration and temperature compensation.
Chip1Stop:
Pressure Sensor 0KPa to 200KPa Differential 4-Pin Case 344C-01 Tray
Verical:
Pressure Sensor 0kPa to 200kPa Differential 4-Pin Case 344C-01 Tray
Newark:
# NXP MPX2200DP Pressure Sensor, Differential, 0.2 mV/kPa, 0 kPa, 200 kPa, 10 V, 16 V
电源电压DC 10.0V min
额定电压DC 10.0 V
无卤素状态 Not Halogen Free
输出电压 ≤40.0 mV
供电电流 6.00 mA
针脚数 4
输出电压Max 0.04 V
工作温度Max 85 ℃
工作温度Min 0 ℃
精度 ±0.25 %
电源电压 10 V
电源电压Max 16 V
电源电压Min 10 V
安装方式 Through Hole
引脚数 4
封装 SIP-4
长度 29.85 mm
宽度 11.05 mm
高度 29.34 mm
封装 SIP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
制造应用 测试与测量, 机器人, 医用, Robotics, Sensing & Instrumentation, Test & Measurement, 传感与仪器, Motor Drive & Control, 电机驱动与控制, Medical, 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
