MEC8-110-02-L-D-RA1

SAMTEC  MEC8-110-02-L-D-RA1  连接器, MEC8系列, 卡边缘, 20 触点, 插座, 0.8 mm, 表面安装

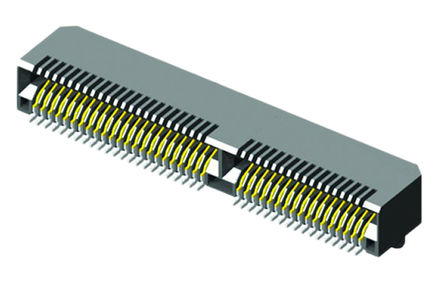

0.80mm MEC8 系列印刷电路板微型边缘卡插座

0.80mm MEC8 系列印刷电路板微型边缘卡插座采用带双排设计，可接受多达 140 个极化镀金触点。 这些 0.80mm MEC8 系列微型边缘卡插座提供印刷电路板垂直安装和印刷电路板直角安装选项，可接受 1.60mm 厚的卡。 0.80mm MEC8 垂直微型边缘卡插座具有 8.65mm 堆叠高度。

欧时:
Samtec MEC8-RA 系列 0.8mm 节距 2 行 20 路 直角 边缘安装 安装 母 边缘连接器 MEC8-110-02-L-D-RA1

得捷:
CONN EDGE DUAL FMALE 20POS 0.031

e络盟:
卡边连接器, 双侧, 1.57 mm, 20 触芯, 表面安装, 直角, 焊接

艾睿:
The MEC8-110-02-L-D-RA1 smart card connector, developed by Samtec, can provide you with a space saving alternative for connecting your printed circuits together. This SKT connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. Its pitch is 0.8 mm. It has a maximum voltage rating of 265 VAC. This is a 2-row connector. It has a right angle body orientation. This product is 5.77 mm tall. This device has a maximum current rating of 2 A/contact. This card edge connector has an operating temperature of -55 to 125 °C. MEC8-110-02-L-D-RA1 is housed in black liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Card Edge SKT 20 POS 0.8mm Solder RA SMD

立创商城:
MEC8-110-02-L-D-RA1
